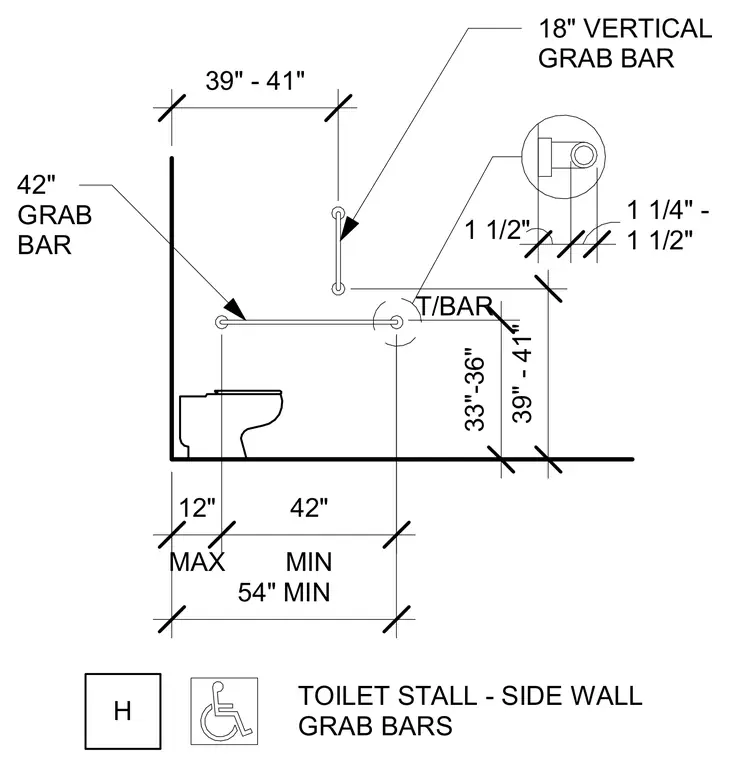

An accessible toilet stall side wall features a horizontal grab bar mounted between 33 inches and 36 inches above the finished floor, spanning at least 42 inches in length. An 18-inch vertical grab bar is positioned with its bottom between 39 inches and 41 inches above the floor, and a maximum of 12 inches from the rear wall. The horizontal grab bar maintains a 1 1/2-inch clearance from the wall, with a 1 1/4-inch to 1 1/2-inch space provided above the bar. The side wall configuration requires a minimum length of 54 inches from the rear wall to the front of the water closet or partition.
TOILET STALL - SIDE WALL GRAB BARS H 42" GRAB BAR MAX 12" MIN 42" 1 1/2" 1 1/4" - 1 1/2" 39" - 41" 54" MIN 39" - 41" 33"-36" T/BAR 18" VERTICAL GRAB BAR
