Two 12 gauge slack wires connect to the structure above at diagonal fixture corners for seismic restraint. Light fixture clips attach directly to the main ceiling tee at each of the four fixture corners. The assembly integrates with main tees, cross tees, and acoustical ceiling tiles.

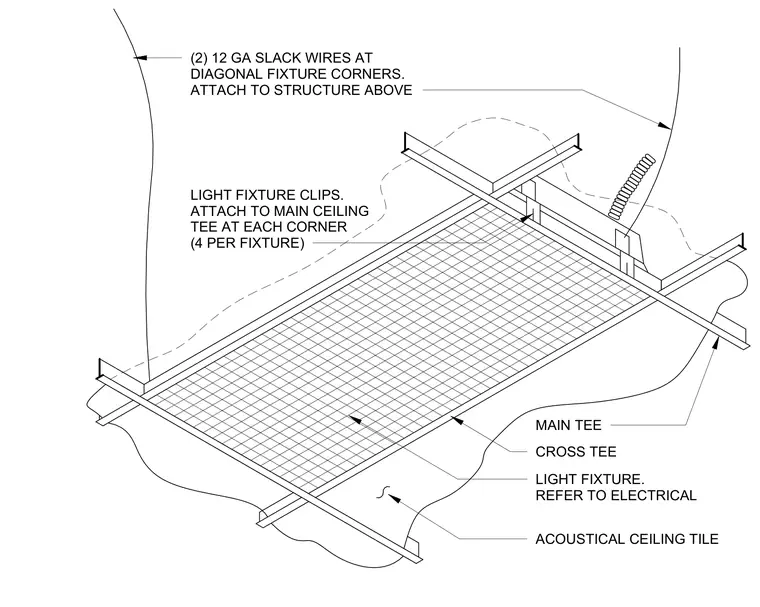

(2) 12 GA SLACK WIRES AT DIAGONAL FIXTURE CORNERS. ATTACH TO STRUCTURE ABOVE LIGHT FIXTURE CLIPS. ATTACH TO MAIN CEILING TEE AT EACH CORNER (4 PER FIXTURE) MAIN TEE CROSS TEE LIGHT FIXTURE. REFER TO ELECTRICAL ACOUSTICAL CEILING TILE
