A linear metal panel ceiling terminates near an exterior window via a perimeter angle. The ceiling suspension system hangs from the overhead structure while supporting the linear metal panels. The adjacent wall consists of five-eighths-inch gypsum board on three-and-five-eighths-inch metal studs, with wall construction detailed further in exterior wall sections. A wall corner is visible beyond the immediate assembly, meeting the window frame below.

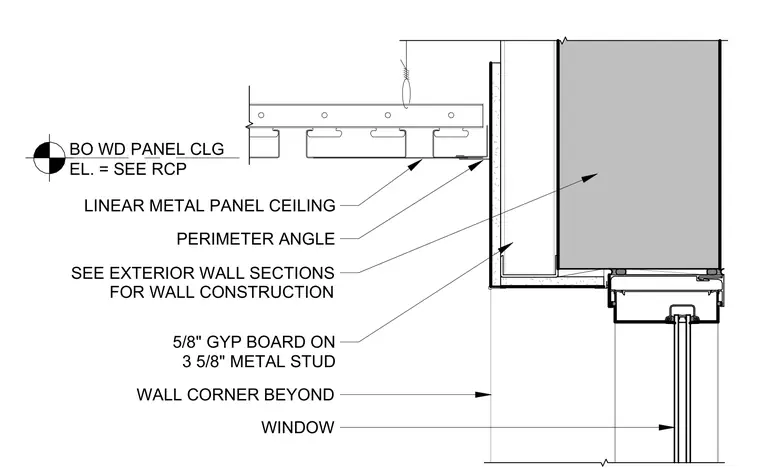

BO WD PANEL CLG EL. = SEE RCP WALL CORNER BEYOND SEE EXTERIOR WALL SECTIONS FOR WALL CONSTRUCTION 5/8" GYP BOARD ON 3 5/8" METAL STUD WINDOW LINEAR METAL PANEL CEILING PERIMETER ANGLE
