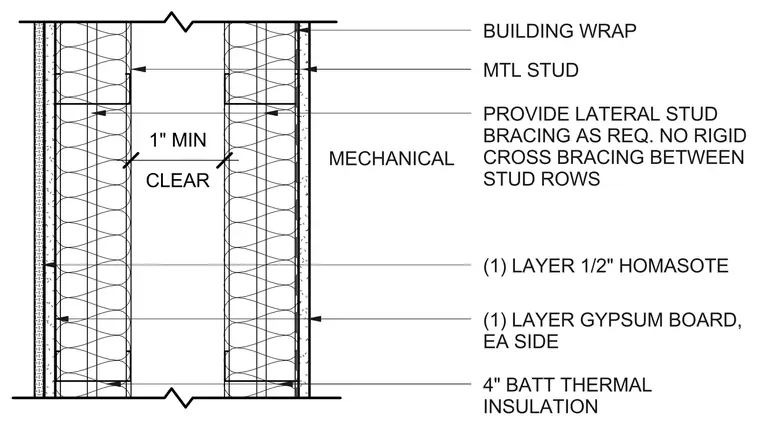

This non-rated thermal partition consists of parallel rows of metal studs maintaining a one-inch minimum clear separation space. Each stud row is framed with four-inch batt thermal insulation and finished with one layer of one-half-inch homasote and one layer of gypsum board on each side. A building wrap is applied on the exterior side, and lateral stud bracing is provided as required without rigid cross bracing between the stud rows.
PROVIDE LATERAL STUD BRACING AS REQ. NO RIGID CROSS BRACING BETWEEN STUD ROWS 4" BATT THERMAL INSULATION CLEAR 1" MIN MTL STUD (1) LAYER 1/2" HOMASOTE (1) LAYER GYPSUM BOARD, EA SIDE BUILDING WRAP MECHANICAL
