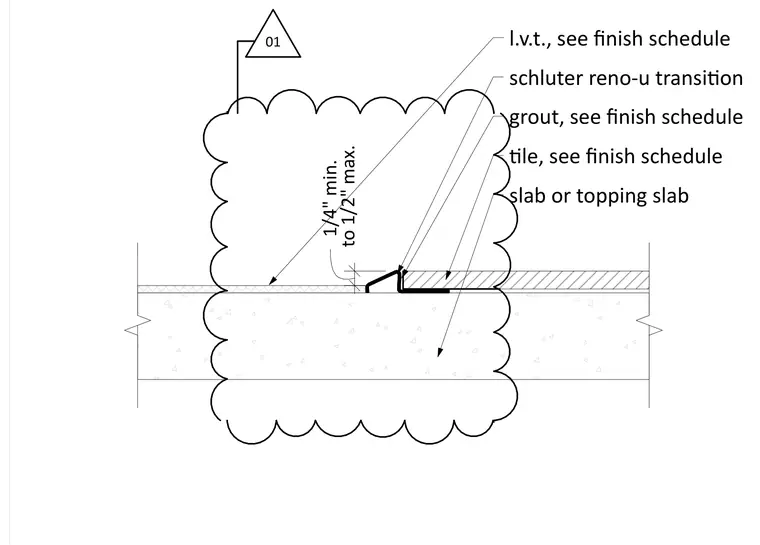

Floor transition between luxury vinyl tile and tile over a concrete or topping slab utilizing a Schluter Reno-U transition profile. The luxury vinyl tile is installed with a thickness ranging from one-quarter inch minimum to one-half inch maximum. Tile and grout are set per the finish schedule. The transition strip accommodates the height difference between the adjacent flooring materials.
1/4" min. to 1/2" max. l.v.t., see finish schedule schluter reno-u transi Ɵon grout, see finish schedule Ɵle, se e finish schedule slab or topping slab 01
