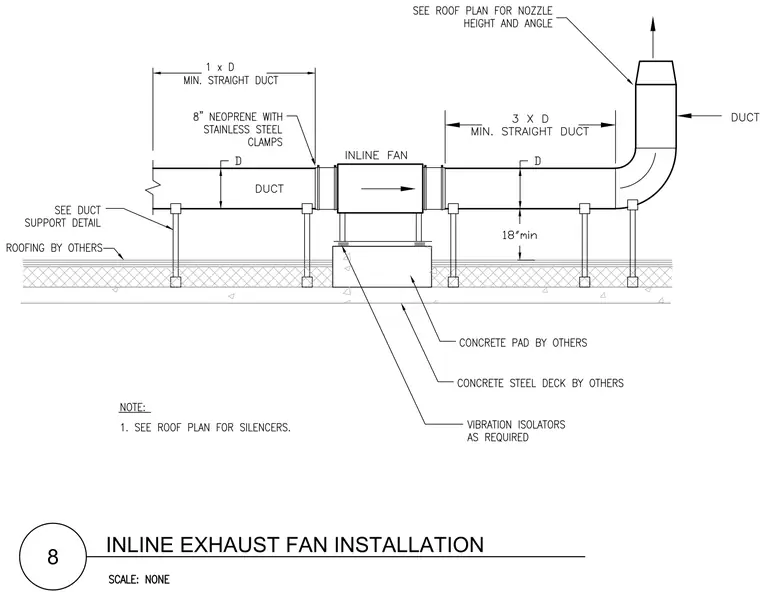

An inline fan is mounted on vibration isolators supported by a concrete pad over a concrete steel deck with roofing by others. The inlet side requires one duct diameter of minimum straight duct connected with eight-inch neoprene with stainless steel clamps. The discharge side requires three duct diameters of minimum straight duct maintained at an eighteen-inch minimum clearance above the roof. Duct supports are provided as detailed separately, and the exhaust nozzle height and angle are sized per the roof plan. Silencers are located per the roof plan.
