Architectural · A-PRGM5

Front and Side Speaker Box Detail

Materials

Cold-formed Steel Metal (misc.)Timber / Wood

Elements

Bracing Ceilings Insulation Millwork / Casework Roof / Floor Openings

Connections

Bracing Connection

About this detail

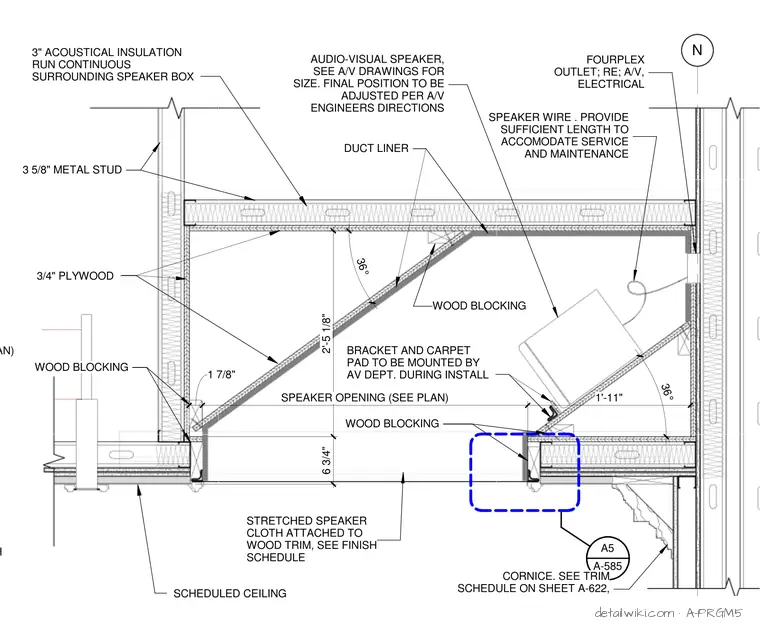

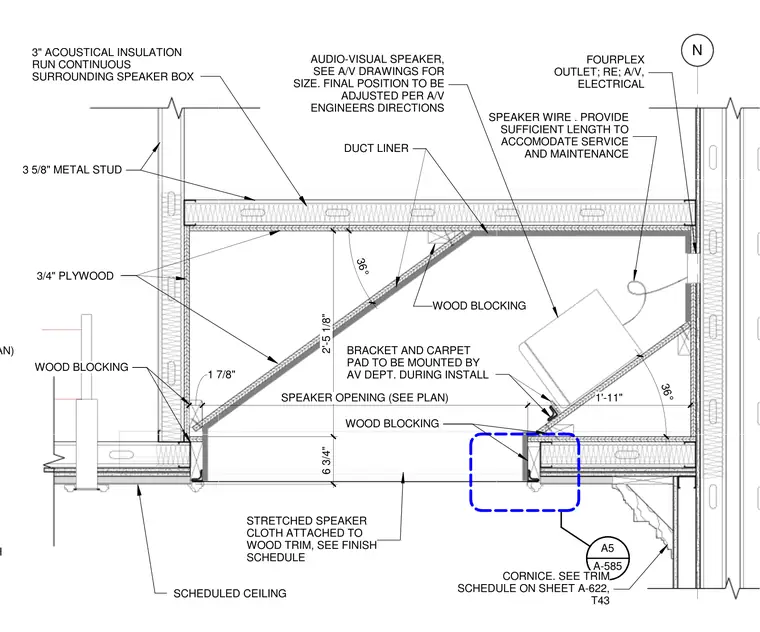

This audio-visual speaker box assembly is framed with three and five-eighths inch metal studs and three-quarters inch plywood, surrounded by three inches of continuous acoustical insulation and duct liner. Wood blocking supports the interior cavity and the angled mounting bracket for the speaker, which is installed with an attached carpet pad by the AV department. A fourplex electrical outlet and speaker wire with sufficient service loop length are provided within the enclosure. The speaker opening is finished with stretched speaker cloth attached to wood trim, matching the scheduled ceiling and cornice details.
