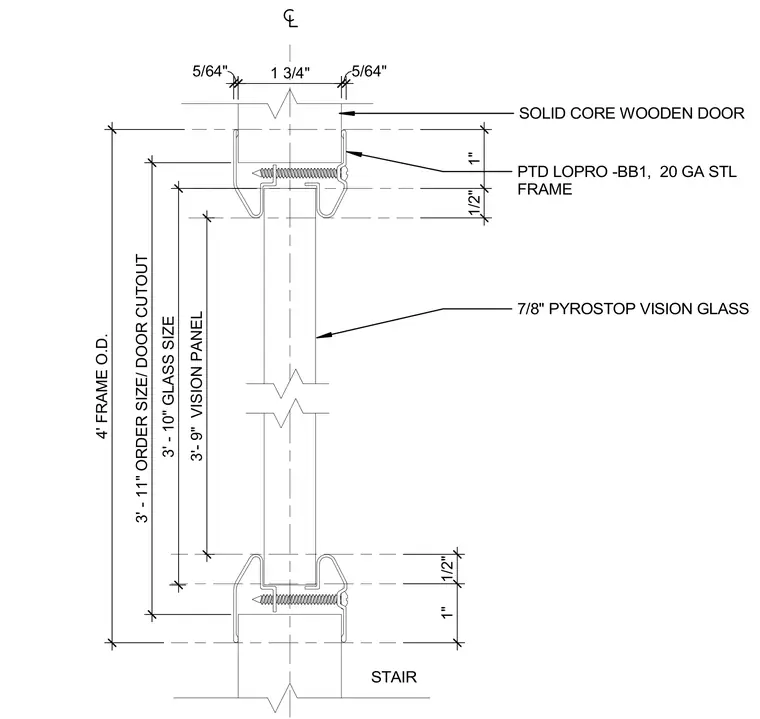

A solid core wooden door supports a fire-rated vision panel assembly with a seven-eighths-inch Pyrostop glass lite. The glass is held by a painted twenty gauge steel low-profile frame secured with countersunk screws into the door cutout. Dimensions indicate a frame outside diameter of four feet with specific clearances and glass sizing tolerances.
SOLID CORE WOODEN DOOR 7/8" PYROSTOP VISION GLASS 1 3/4" 5/64" 5/64" PTD LOPRO -BB1, 20 GA STL FRAME 1/2" 1" STAIR 3'- 9" VISION PANEL 3' - 10" GLASS SIZE 3' - 11" ORDER SIZE/ DOOR CUTOUT 4' FRAME O.D. 1" 1/2"
