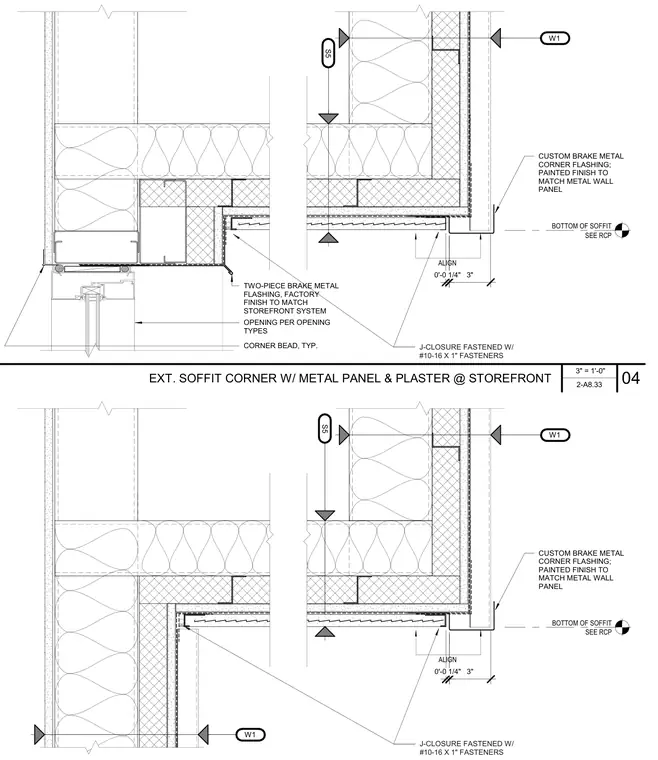

This architectural detail shows an exterior soffit corner junction interfacing with a storefront system, finished with custom brake metal corner flashing and a painted finish matching the metal wall panel. A three-inch J-closure is secured using number 10-16 by one-inch fasteners, referenced to the reflected ceiling plan at the bottom of the soffit. A two-piece brake metal flashing with a factory finish matches the storefront system and incorporates typical corner beads. Alignment dimensions and opening types govern the layout of the adjacent wall and ceiling construction.
W1 W1 S5 ALIGN W1 ALIGN S5 CUSTOM BRAKE METAL CORNER FLASHING; PAINTED FINISH TO MATCH METAL WALL PANEL 3" J-CLOSURE FASTENED W/ #10-16 X 1" FASTENERS SEE RCP BOTTOM OF SOFFIT 0'-0 1/4" CUSTOM BRAKE METAL CORNER FLASHING; PAINTED FINISH TO MATCH METAL WALL PANEL 3" J-CLOSURE FASTENED W/ #10-16 X 1" FASTENERS SEE RCP BOTTOM OF SOFFIT 0'-0 1/4" TWO-PIECE BRAKE METAL FLASHING, FACTORY FINISH TO MATCH STOREFRONT SYSTEM CORNER BEAD, TYP. OPENING PER OPENING TYPES 3" = 1'-0" 2-A8.33 04 EXT. SOFFIT CORNER W/ METAL PANEL & PLASTER @ STOREFRONT
