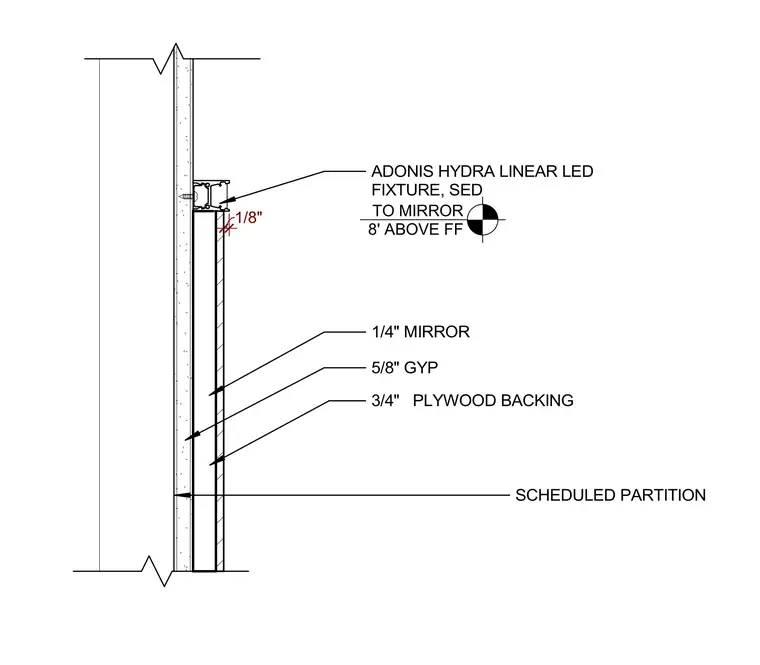

A quarter-inch mirror mounts over a five-eighths-inch gypsum board and three-quarter-inch plywood backing attached to a scheduled interior partition. An Adonis Hydra linear LED fixture sits adjacent to the top of the mirror at eight feet above finished floor. A one-eighth-inch clearance is maintained at the fixture interface.
SCHEDULED PARTITION 3/4" PLYWOOD BACKING 1/4" MIRROR 5/8" GYP 1/8" ADONIS HYDRA LINEAR LED FIXTURE, SED TO MIRROR 8' ABOVE FF
