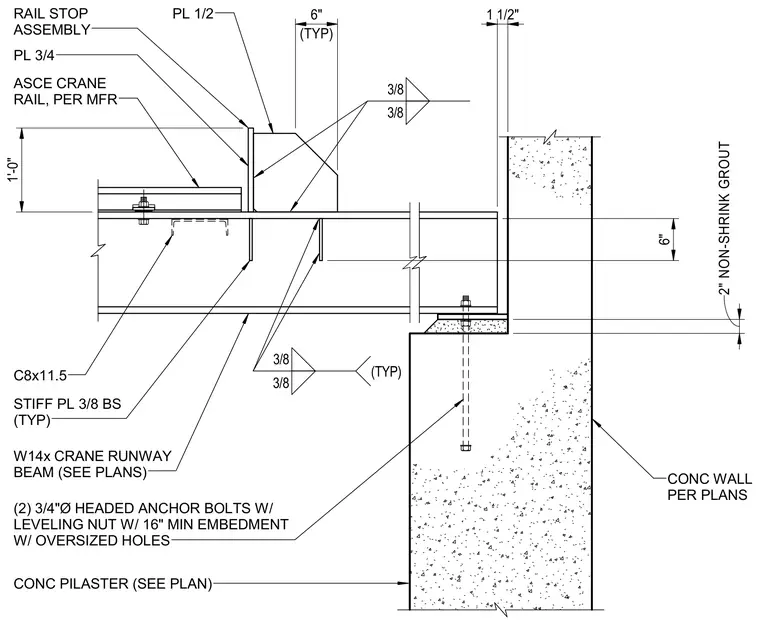

A W14x crane runway beam bears on a concrete pilaster with a two-inch non-shrink grout pad and two three-quarter-inch diameter headed anchor bolts with leveling nuts and a sixteen-inch minimum embedment in oversized holes. An ASCE crane rail rests on top of the beam, adjacent to a welded rail stop assembly fabricated from half-inch and three-quarter-inch thick steel plates. Three-eighths-inch fillet welds secure the stiffener plates and stop components to the structural steel framing.
W14x CRANE RUNWAY BEAM (SEE PLANS) CONC PILASTER (SEE PLAN) (2) 3/4"Ø HEADED ANCHOR BOLTS W/ LEVELING NUT W/ 16" MIN EMBEDMENT W/ OVERSIZED HOLES CONC WALL PER PLANS C8x11.5 2" NON-SHRINK GROUT STIFF PL 3/8 BS (TYP) ASCE CRANE RAIL, PER MFR 1'-0" (TYP) 6" 1 1/2" PL 3/4 RAIL STOP ASSEMBLY PL 1/2 6" 3/8 3/8 3/8 3/8 (TYP)
