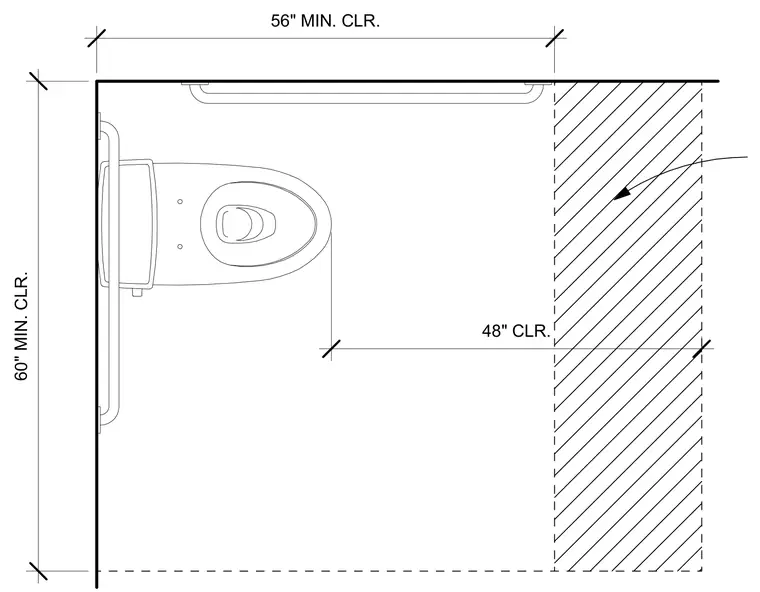

An accessible water closet stall plan provides a sixty-inch minimum clearance along the side wall and a fifty-six-inch minimum clearance along the rear wall, with a forty-eight-inch clearance designated across the hatched maneuvering space. The door is permitted to swing over the hatched portion of the maneuvering space. Grab bars are mounted adjacent to the water closet on the rear and side walls.
DOOR PERMITTED TO SWING OVER HATCHED PORTION OF MANUVERING SPACE 60" MIN. CLR. 56" MIN. CLR. 48" CLR.
