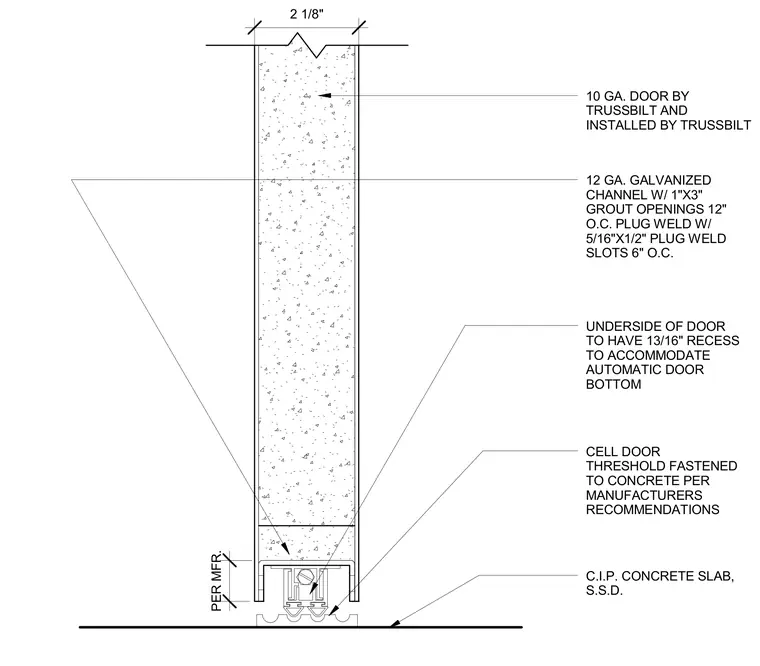

A ten-gauge steel cell door by Trussbilt bears above a cast-in-place concrete slab with structural steel detailing. A twelve-gauge galvanized channel features one-inch by three-inch grout openings spaced twelve inches on center, secured with plug welds through five-sixteenths by one-half-inch plug weld slots spaced six inches on center. The underside of the door includes a thirteen-sixteenths-inch recess to accommodate an automatic door bottom. The cell door threshold is fastened directly to the concrete according to the manufacturer recommendations.
2 1/8" PER MFR. C.I.P. CONCRETE SLAB, S.S.D. UNDERSIDE OF DOOR TO HAVE 13/16" RECESS TO ACCOMMODATE AUTOMATIC DOOR BOTTOM CELL DOOR THRESHOLD FASTENED TO CONCRETE PER MANUFACTURERS RECOMMENDATIONS 12 GA. GALVANIZED CHANNEL W/ 1"X3" GROUT OPENINGS 12" O.C. PLUG WELD W/ 5/16"X1/2" PLUG WELD SLOTS 6" O.C. 10 GA. DOOR BY TRUSSBILT AND INSTALLED BY TRUSSBILT
