Architectural · A-PQ396

Typical Cold-Formed Metal Framing and Partition Details

Materials

Steel Cold-formed Steel Timber / Wood Aluminum Metal (misc.)Gypsum / Drywall

Elements

Walls Doors Millwork / Casework Connections / Plates Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

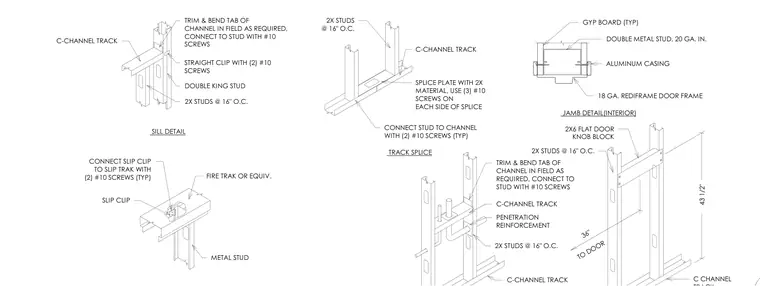

These details illustrate various cold-formed metal framing connections including track splices, sill details, interior door jambs, and penetration reinforcements. The track splice uses a C-channel splice plate with wood or metal material secured by three number ten screws on each side, with studs connected to the channel using two number ten screws typically. The sill and head details feature slip clips fastened to slip tracks with two number ten screws. Door jambs incorporate double metal twenty-gauge studs, an eighteen-gauge Rediframe door frame with aluminum casing, and a two-by-six flat door knob blocking set at thirty-six inches above the finished floor.
