A flush-mounted triangular geometric symbol features vertices pointing upward with a one-eighth-inch minimum to one-quarter-inch maximum radius. The symbol measures twelve inches on all sides with a typical thickness of one-quarter of an inch. The background color requires a seventy percent contrast to the door color. The wheelchair accessibility icon is centered within the triangle.

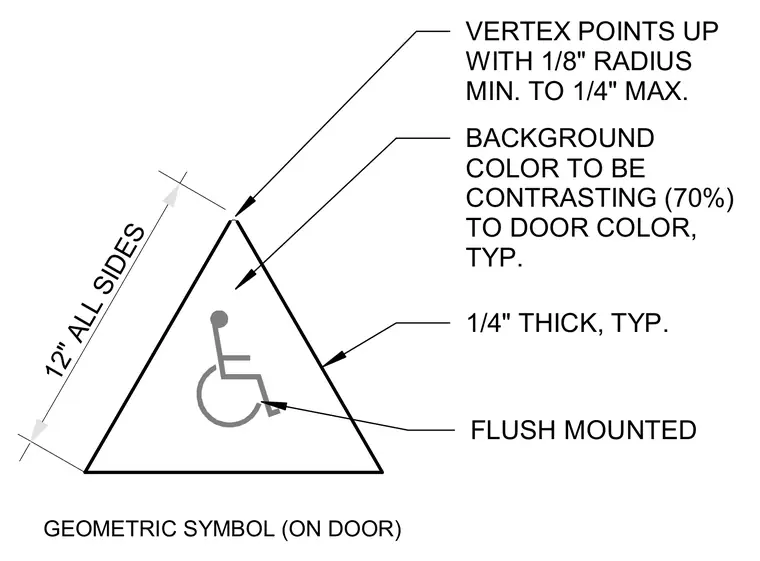

BACKGROUND COLOR TO BE CONTRASTING (70%) TO DOOR COLOR, TYP. 1/4" THICK, TYP. 12" ALL SIDES GEOMETRIC SYMBOL (ON DOOR) FLUSH MOUNTED VERTEX POINTS UP WITH 1/8" RADIUS MIN. TO 1/4" MAX.
