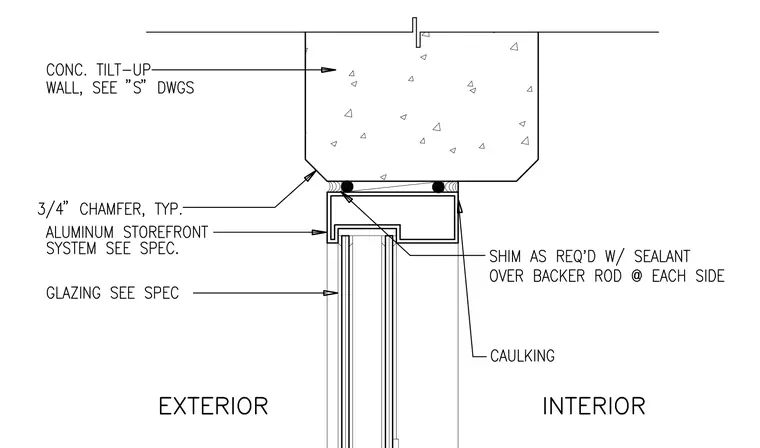

An aluminum storefront system is installed below a concrete tilt-up wall with a three-quarter-inch typical chamfer at the exterior corner. Shims are placed as required with sealant over a backer rod at each side of the head member. Caulking is applied at the interior joint, and glazing is installed per specifications.
