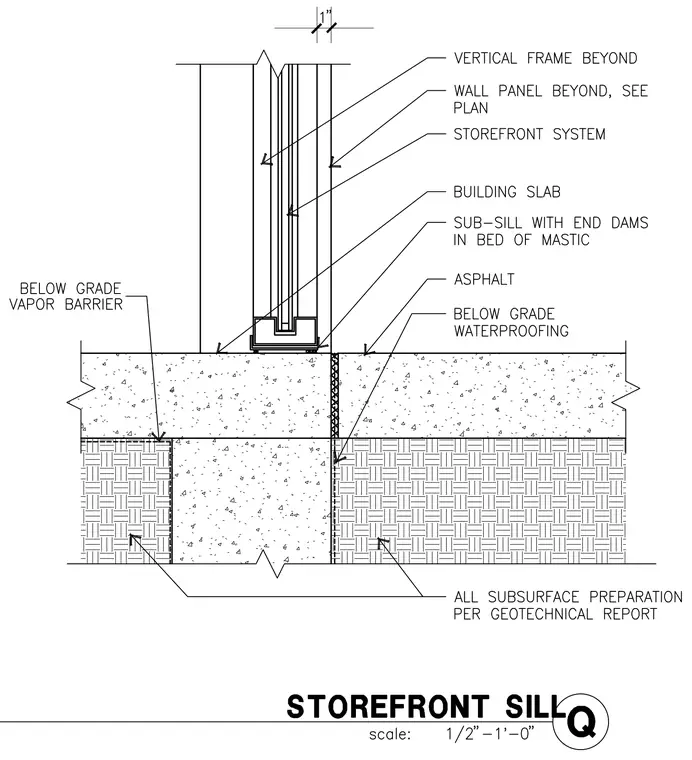

The storefront system is anchored at the building slab with a sub-sill featuring end dams set in a bed of mastic. Below-grade waterproofing and asphalt transition across the slab joint, adjacent to subsurface preparation per the geotechnical report and below-grade vapor barrier. Vertical framing members and wall panels extend beyond the sill assembly per architectural plans.
