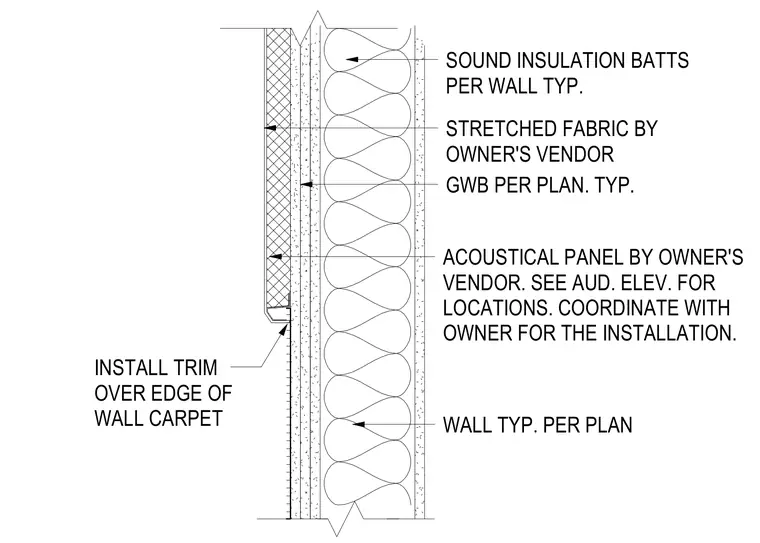

This interior wall assembly features sound insulation batts installed within the stud cavity behind gypsum wallboard specified per plan. An acoustical panel by the owner's vendor with stretched fabric is mounted to the face of the gypsum board. Trim is installed over the bottom edge where it transitions to wall carpet. Locations of acoustical panels are coordinated with the owner and referenced to the auditorium elevations.
ACOUSTICAL PANEL BY OWNER'S VENDOR. SEE AUD. ELEV. FOR LOCATIONS. COORDINATE WITH OWNER FOR THE INSTALLATION. SOUND INSULATION BATTS PER WALL TYP. WALL TYP. PER PLAN GWB PER PLAN. TYP. STRETCHED FABRIC BY OWNER'S VENDOR INSTALL TRIM OVER EDGE OF WALL CARPET
