Base Cabinet with Pull-Out Waste Receptacle

Materials

Elements

Partitions Doors Floors / Slabs Millwork / Casework

About this detail

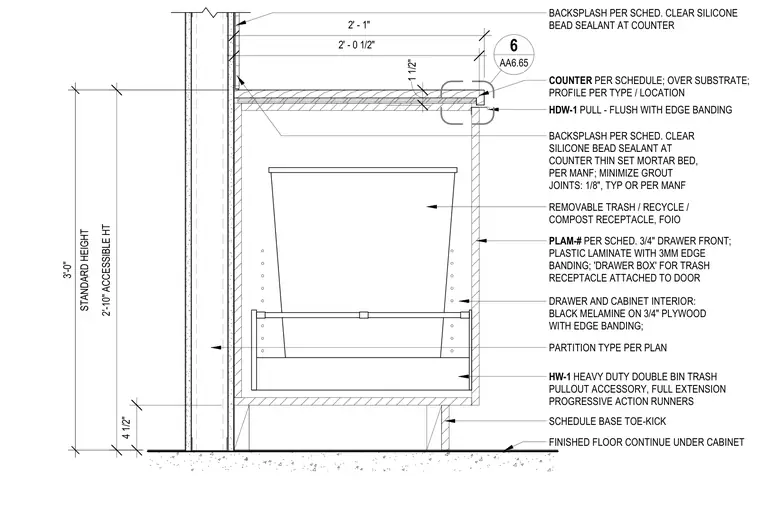

This interior millwork detail shows a base cabinet with a heavy-duty double-bin trash pull-out accessory mounted on full-extension progressive action runners. The three-quarter-inch plastic laminate drawer front features three-millimeter edge banding and acts as the door attached directly to the trash receptacle drawer box. The cabinet interior and drawer are constructed from black melamine on three-quarter-inch plywood with edge banding, resting on a toe-kick base over a finished floor that continues beneath the unit. The countertop is set over a substrate with a back-splash sealed by a clear silicone bead, positioned at an accessible height of two feet ten inches and a standard height of three feet.
