An entry threshold condition occurs between a concrete wall and a storefront door assembly. Continuous sealant is applied on both the exterior and interior sides at the joint between the concrete structure and the door frame. A Pemko door top weather strip 346, finished to match the door frame, is secured to the frame with factory-provided number 6 by 5/8-inch Phillips pan head sheet metal screws.

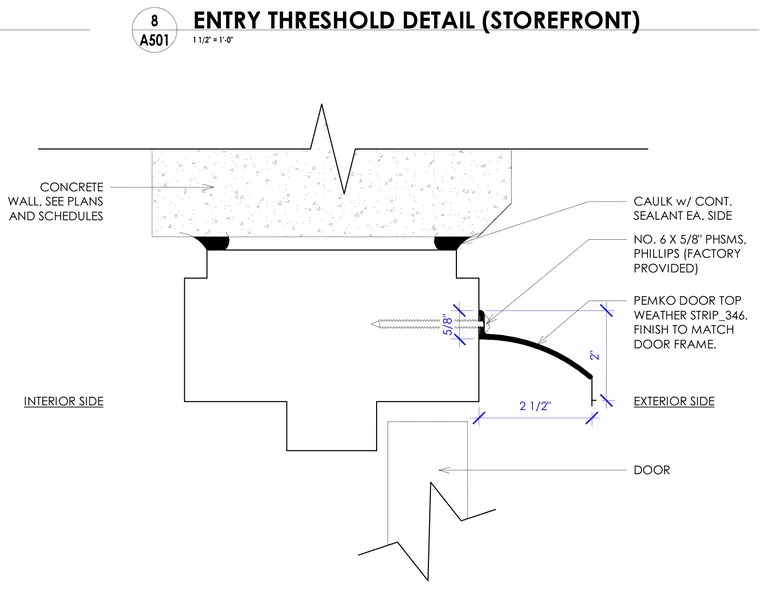

EXTERIOR SIDE INTERIOR SIDE CONCRETE WALL, SEE PLANS AND SCHEDULES DOOR CAULK w/ CONT. SEALANT EA. SIDE 2 1/2" 5/8" PEMKO DOOR TOP WEATHER STRIP_346. FINISH TO MATCH DOOR FRAME. NO. 6 X 5/8" PHSMS, PHILLIPS (FACTORY PROVIDED) 2" 1 1/2" = 1'-0" A501 8 ENTRY THRESHOLD DETAIL (STOREFRONT)
