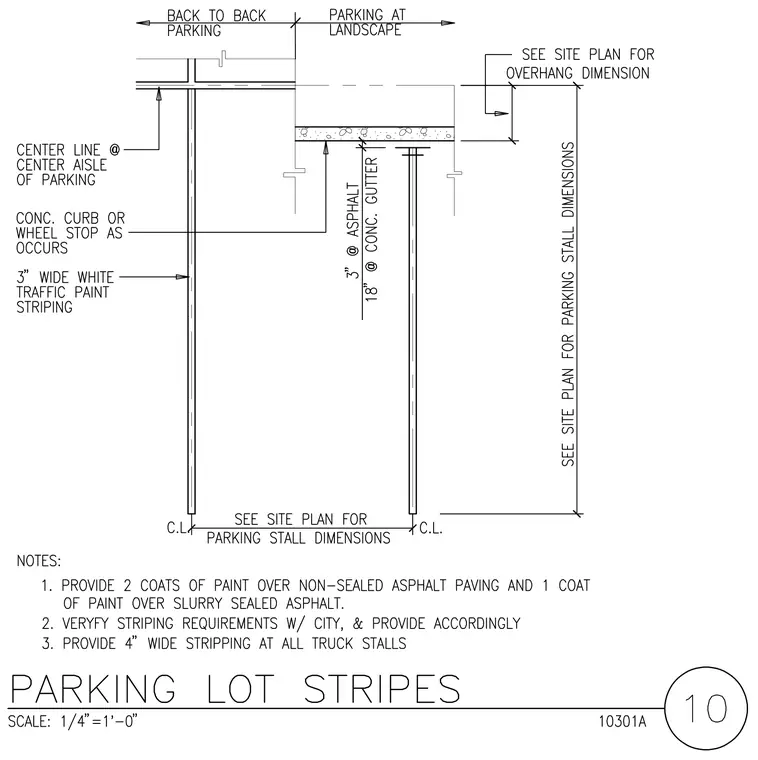

Parking stall striping layout featuring 3-inch wide white traffic paint striping with center line alignment at the center aisle of parking. Concrete curb or wheel stop placement occurs at asphalt and concrete gutter transitions, with 3 inches of asphalt adjacent to an 18-inch concrete gutter. Parking stall dimensions and overhang dimensions are referenced to the site plan. Notes require two coats of paint over non-sealed asphalt paving, one coat over slurry sealed asphalt, and 4-inch wide striping at all truck stalls while verifying requirements with the city.
