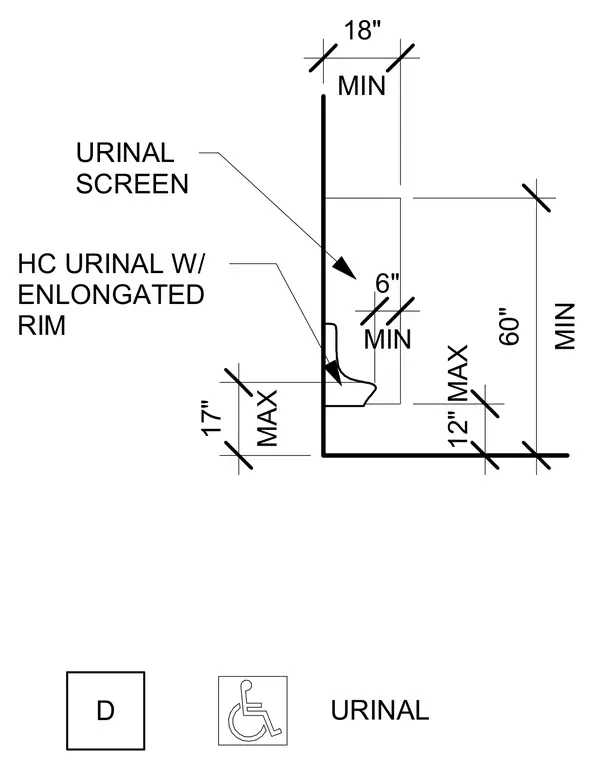

An accessible handicap urinal with an elongated rim is mounted on the wall alongside a privacy screen. Vertical and horizontal dimensions indicate the required clearances and installation heights for ADA compliance. The rim is positioned at a maximum of 17 inches above the finished floor, with a minimum 12-inch clearance to the bottom of the urinal and a 60-inch minimum height for the privacy screen. The screen extends a minimum of 18 inches from the wall with a 6-inch minimum clearance.
URINAL D URINAL SCREEN HC URINAL W/ ENLONGATED RIM MIN 18" MAX 17" MIN 60" 12" MAX MIN 6"
