A two-hour fire-rated shaft wall assembly occurs at a ceiling transition outside corner. The shaft side features one-inch shaft liner secured by a sixteen-gauge J runner fastened with two screws into each stud. A steel track is mechanically fastened at a maximum of twenty-four inches on center. Firestop sealant is applied at the joint for the rated assembly per test report WHI 495-PSH-0154/0167.

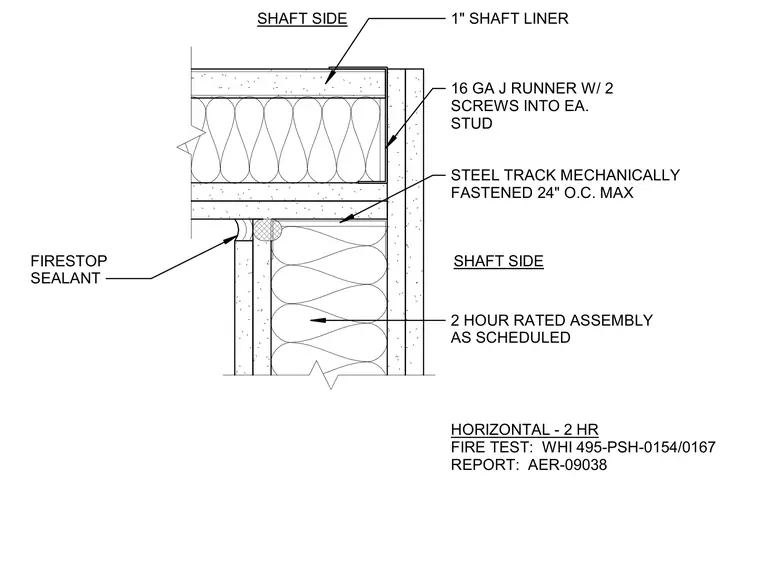

SHAFT SIDE 1" SHAFT LINER 16 GA J RUNNER W/ 2 SCREWS INTO EA. STUD SHAFT SIDE FIRESTOP SEALANT STEEL TRACK MECHANICALLY FASTENED 24" O.C. MAX 2 HOUR RATED ASSEMBLY AS SCHEDULED HORIZONTAL - 2 HR FIRE TEST: WHI 495-PSH-0154/0167 REPORT: AER-09038
