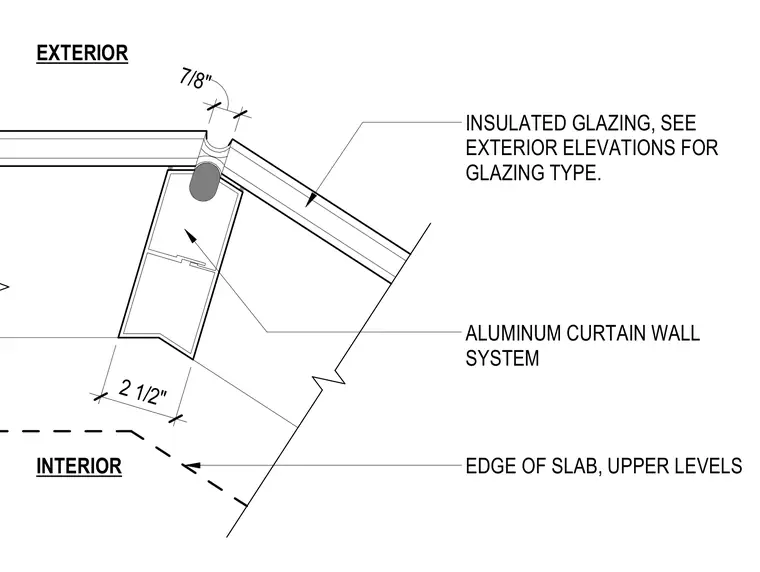

An aluminum curtain wall system turns an exterior building corner with a vertical mullion profile. Insulated glazing units are retained within the framing members, with glazing types specified per exterior elevations. The upper level slab edge aligns relative to the interior face of the assembly.
7/8" 2 1/2" ALUMINUM CURTAIN WALL SYSTEM INSULATED GLAZING, SEE EXTERIOR ELEVATIONS FOR GLAZING TYPE. EXTERIOR INTERIOR EDGE OF SLAB, UPPER LEVELS
