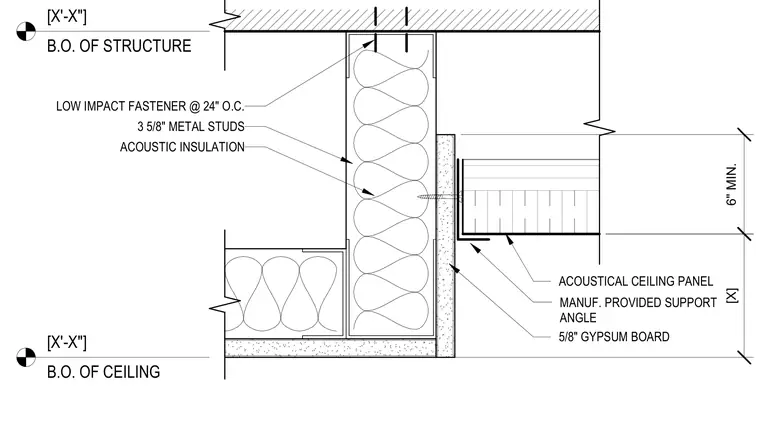

An acoustical ceiling panel transitions to a lower gypsum board soffit supported by cold-formed steel framing. The vertical drop is framed with three and five-eighths inch metal studs packed with acoustic insulation and secured overhead with low impact fasteners at twenty-four inches on center. A five-eighths inch gypsum board finish faces the drop, while a manufacturer-provided support angle carries the acoustical ceiling system maintaining a minimum six-inch drop dimension.
[X'-X"] B.O. OF STRUCTURE [X'-X"] B.O. OF CEILING 6" MIN. 3 5/8" METAL STUDS ACOUSTIC INSULATION 5/8" GYPSUM BOARD ACOUSTICAL CEILING PANEL LOW IMPACT FASTENER @ 24" O.C. [X] MANUF. PROVIDED SUPPORT ANGLE
