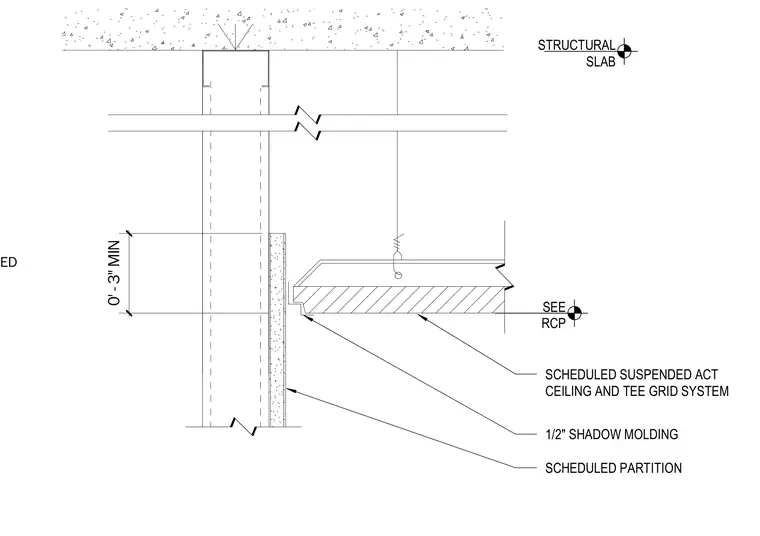

A scheduled suspended acoustical ceiling tile and tee grid system terminates at a scheduled partition wall using a half-inch shadow molding. The suspended ceiling system hangs from the structural slab above with hanger wire and is detailed with a minimum three-inch clearance. The partition wall extends upward to the structural slab.
CEILING HEIGHT AS SCHEDULED 0' - 3" MIN 1/2" SHADOW MOLDING SCHEDULED SUSPENDED ACT CEILING AND TEE GRID SYSTEM SCHEDULED PARTITION STRUCTURAL SLAB SEE RCP
