Three metal studs form the intersection and corner framing assemblies, finished with an outer line of gypsum board. Fastening is executed using number 8 sheet metal screws spaced at 16 inches on center into each adjacent stud or intersecting stud as typical.

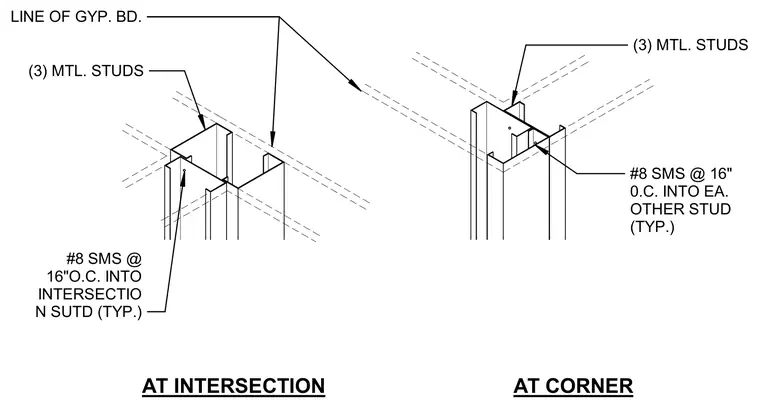

#8 SMS @ 16"O.C. INTO INTERSECTIO N SUTD (TYP.) (3) MTL. STUDS LINE OF GYP. BD. (3) MTL. STUDS #8 SMS @ 16" 0.C. INTO EA. OTHER STUD (TYP.) AT INTERSECTION AT CORNER
