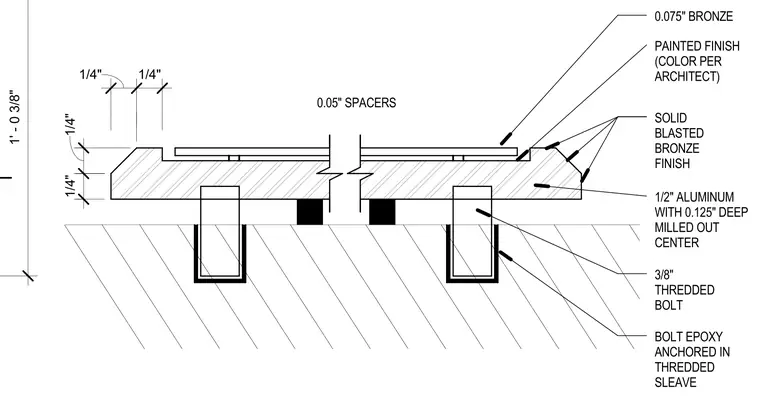

This interior sign section mounts a 1/2-inch aluminum panel with a 0.125-inch deep milled center onto a backing substrate using three-eighths-inch threaded bolts. The bolts are secured with bolt epoxy anchored in threaded sleeves. A 0.075-inch bronze plaque with a solid blasted bronze finish is set within the milled recess over 0.05-inch spacers. Surrounding surfaces feature a painted finish in a color specified by the architect.
1' - 0 3/8" 0.05" SPACERS 0.075" BRONZE BOLT EPOXY ANCHORED IN THREDDED SLEAVE 1/2" ALUMINUM WITH 0.125" DEEP MILLED OUT CENTER 3/8" THREDDED BOLT SOLID BLASTED BRONZE FINISH PAINTED FINISH (COLOR PER ARCHITECT) 1/4" 1/4" 1/4" 1/4"
