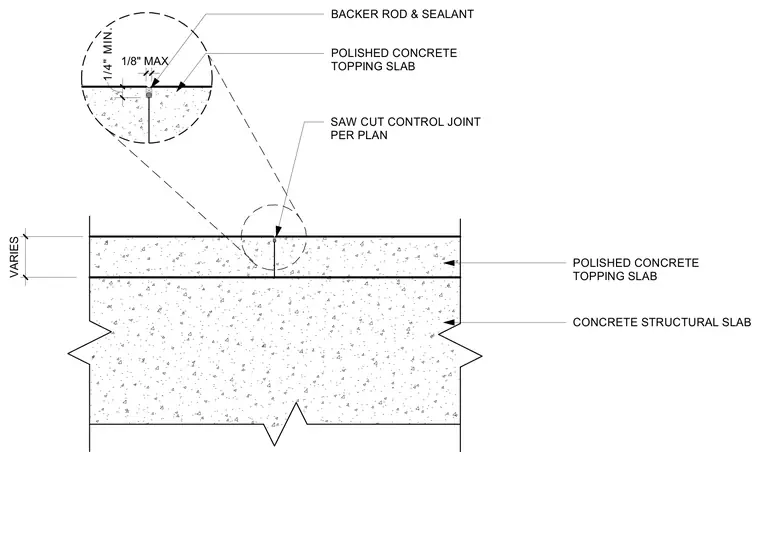

A polished concrete topping slab is cast over a concrete structural slab with a variable thickness. A saw-cut control joint is located in the topping slab per plan, featuring a joint width between one-eighth inch maximum and one-fourth inch minimum. The joint is finished with a backer rod and sealant at the surface.
CONCRETE STRUCTURAL SLAB POLISHED CONCRETE TOPPING SLAB VARIES SAW CUT CONTROL JOINT PER PLAN 1/8" MAX 1/4" MIN. BACKER ROD & SEALANT POLISHED CONCRETE TOPPING SLAB
