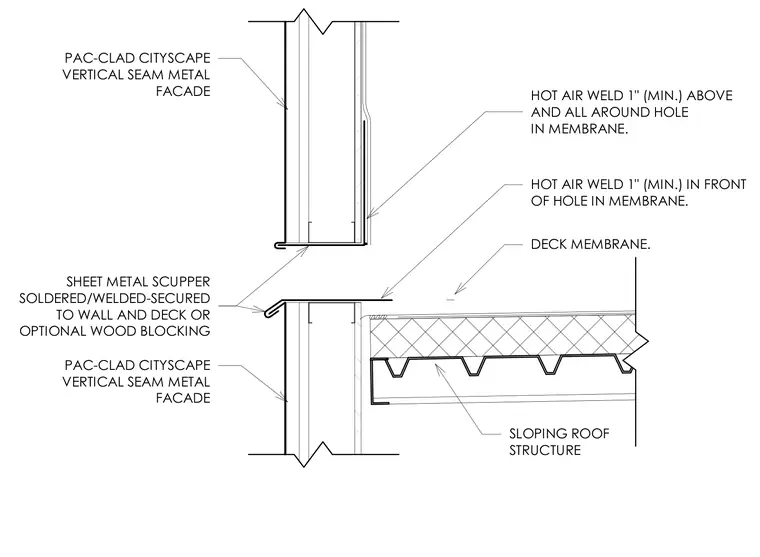

A sheet metal scupper passes through the exterior wall and deck, secured to the wall and deck or optional wood blocking. The deck membrane is hot air welded one inch minimum above and all around the hole in the membrane, as well as one inch minimum in front of the hole. The assembly is integrated with a sloping roof structure and a vertical seam metal facade.
HOT AIR WELD 1" (MIN.) ABOVE AND ALL AROUND HOLE IN MEMBRANE. SHEET METAL SCUPPER SOLDERED/WELDED-SECURED TO WALL AND DECK OR OPTIONAL WOOD BLOCKING HOT AIR WELD 1" (MIN.) IN FRONT OF HOLE IN MEMBRANE. DECK MEMBRANE. PAC-CLAD CITYSCAPE VERTICAL SEAM METAL FACADE SLOPING ROOF STRUCTURE PAC-CLAD CITYSCAPE VERTICAL SEAM METAL FACADE
