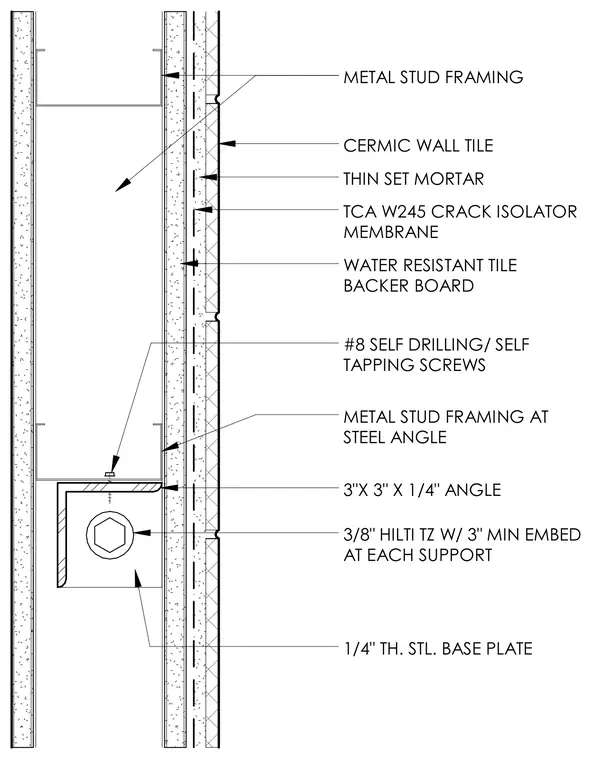

Metal stud framing supports a water-resistant tile backer board finished with ceramic wall tile set in thin-set mortar over a TCA W245 crack isolator membrane. A continuous metal stud framing channel rests on a three-inch by three-inch by one-quarter-inch steel angle secured by number eight self-drilling and self-tapping screws. The steel angle is anchored to a one-quarter-inch thick steel base plate using three-eighths-inch Hilti TZ expansion anchors with a three-inch minimum embedment at each support.
TCA W245 CRACK ISOLATOR MEMBRANE WATER RESISTANT TILE BACKER BOARD THIN SET MORTAR CERMIC WALL TILE METAL STUD FRAMING AT STEEL ANGLE 3"X 3" X 1/4" ANGLE 3/8" HILTI TZ W/ 3" MIN EMBED AT EACH SUPPORT 1/4" TH. STL. BASE PLATE #8 SELF DRILLING/ SELF TAPPING SCREWS METAL STUD FRAMING
