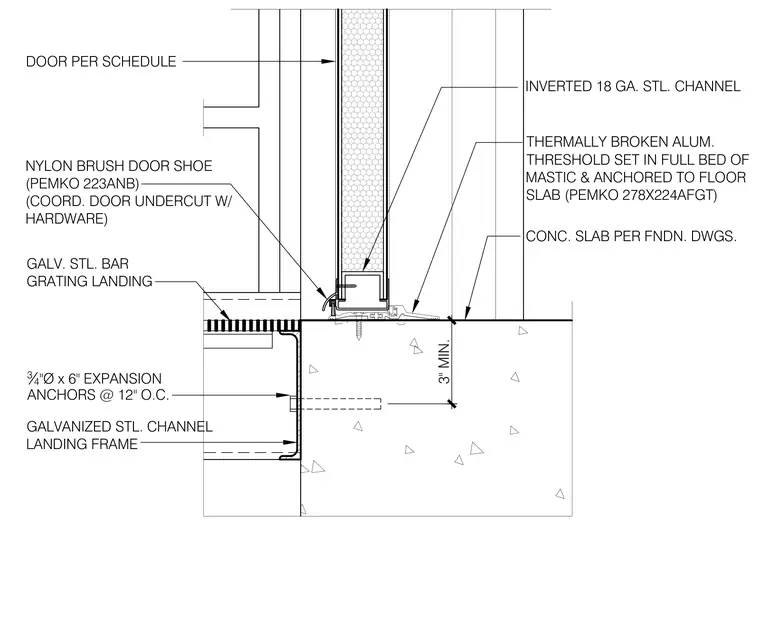

The door assembly features a hollow metal door positioned above an inverted 18-gauge steel channel and a thermally broken aluminum threshold. The threshold is set in a full bed of mastic and anchored directly to the concrete floor slab. A nylon brush door shoe is fitted to the bottom of the door, requiring coordination of the door undercut with hardware. Exterior to the threshold, a galvanized steel bar grating landing is supported by a galvanized steel channel landing frame. The landing frame is secured to the concrete slab with three-quarter-inch diameter by six-inch expansion anchors spaced at twelve inches on center.
GALV. STL. BAR GRATING LANDING 3 4 "Ø x 6" EXPANSION ANCHORS @ 12" O.C. GALVANIZED STL. CHANNEL LANDING FRAME DOOR PER SCHEDULE CONC. SLAB PER FNDN. DWGS. 3" MIN. INVERTED 18 GA. STL. CHANNEL NYLON BRUSH DOOR SHOE (PEMKO 223ANB) (COORD. DOOR UNDERCUT W/ HARDWARE) THERMALLY BROKEN ALUM. THRESHOLD SET IN FULL BED OF MASTIC & ANCHORED TO FLOOR SLAB (PEMKO 278X224AFGT)
