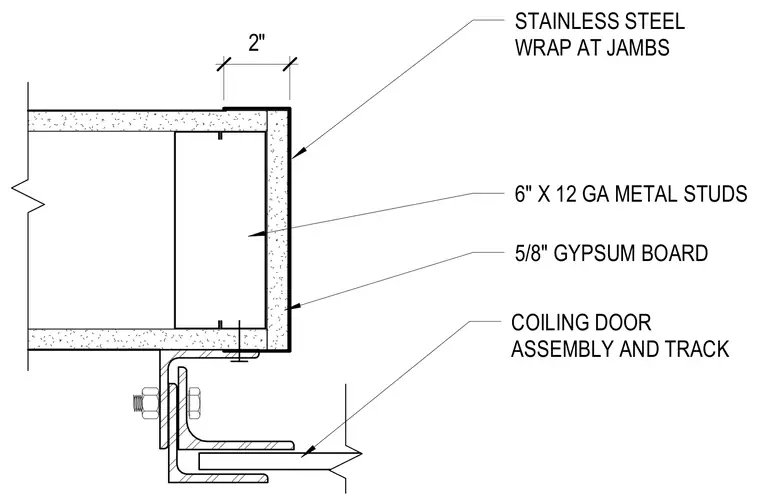

The jamb assembly consists of 6-inch by 12-gauge cold-formed metal studs faced with 5/8-inch gypsum board. A stainless steel wrap covers the jamb return with a 2-inch dimension. The coiling door assembly and track attach adjacent to the framed wall.
COILING DOOR ASSEMBLY AND TRACK 5/8" GYPSUM BOARD 6" X 12 GA METAL STUDS STAINLESS STEEL WRAP AT JAMBS 2"
