Restroom Fixture Mountings and Accessibility Clearances

Materials

Concrete Steel Stainless Steel Timber / Wood

Elements

Walls Partitions Doors Ceilings Floors / Slabs Site / Paving Reinforcing

About this detail

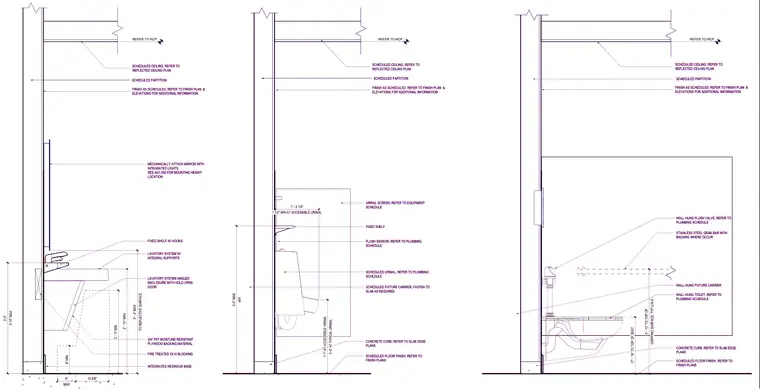

Commercial restroom partition wall assemblies and fixture mounting heights. A lavatory system features integrated supports and a mechanically attached mirror with integrated lights, backed by fire-treated 2x10 blocking and three-quarter-inch moisture-resistant plywood. Urinal and water-closet installations indicate fixture carriers fastened to the concrete slab, flush sensors, and stainless steel grab bars with backing where required. Dimensioned vertical clearances establish standard and accessible heights above the scheduled floor finish and integrated resinous base up to the scheduled ceiling.

SCHEDULED FLOOR FINISH, REFER TO FINISH PLANS CONCRETE CURB, REFER TO SLAB EDGE PLANS SCHEDULED CEILING, REFER TO REFLECTED CEILING PLAN FINISH AS SCHEDULED. REFER TO FINISH PLAN & ELEVATIONS FOR ADDITIONAL INFORMATION REFER TO RCP WALL HUNG TOILET, REFER TO PLUMBING SCHEDULE WALL HUNG FIXTURE CARRIER WALL HUNG FLUSH VALVE, REFER TO PLUMBING SCHEDULE SCHEDULED PARTITION STAINLESS STEEL GRAB BAR WITH BACKING WHERE OCCUR GRIPPING SURFACE, TYP U.N.O 2' - 10" TO TOP OF 17" - 19" TO TOP OF SEAT SCHEDULED URINAL, REFER TO PLUMBING SCHEDULE SCHEDULED FLOOR FINISH, REFER TO FINISH PLANS URINAL SCREEN, REFER TO EQUIPMENT SCHEDULE CONCRETE CURB, REFER TO SLAB EDGE PLANS SCHEDULED FIXTURE CARRIER, FASTEN TO SLAB AS REQUIRED FLUSH SENSOR, REFER TO PLUMBING SCHEDULE SCHEDULED PARTITION SCHEDULED CEILING, REFER TO REFLECTED CEILING PLAN FINISH AS SCHEDULED. REFER TO FINISH PLAN & ELEVATIONS FOR ADDITIONAL INFORMATION FIXED SHELF AFF 4'-0" MAX 2'-0" AT TYPICAL URINAL 1'-7" AT ACCESSIBLE URINAL 1 1/2" MIN AT ACCESSIBLE URINAL 1' - 2 1/4" REFER TO RCP 2' - 10" MAX TO REFLECTIVE SURFACE 3' - 4" MAX REFER TO RCP FIRE TREATED 2X10 BLOCKING LAVATORY SYSTEM W/ INTEGRAL SUPPORTS LAVATORY SYSTEM ANGLED ENCLOSURE WITH HOLD OPEN DOOR 3/4" FRT MOISTURE RESISTANT PLYWOOD BACKING MATERIAL SCHEDULED PARTITION SCHEDULED CEILING, REFER TO REFLECTED CEILING PLAN FINISH AS SCHEDULED. REFER TO FINISH PLAN & ELEVATIONS FOR ADDITIONAL INFORMATION FIXED SHELF W/ HOOKS 3'-10" MAX 3'-0" INTEGRATED RESINOUS BASE MECHANICALLY ATTACH MIRROR WITH INTEGRATED LIGHTS. SEE AG1.050 FOR MOUNTING HEIGHT LOCATION 2' - 3" MIN 9" MIN MAX 6" 10 5/8" SCHEDULED FLOOR FINISH, REFER TO FINISH PLANS CONCRETE CURB, REFER TO SLAB EDGE PLANS SCHEDULED CEILING, REFER TO REFLECTED CEILING PLAN FINISH AS SCHEDULED. REFER TO FINISH PLAN & ELEVATIONS FOR ADDITIONAL INFORMATION REFER TO RCP WALL HUNG TOILET, REFER TO PLUMBING SCHEDULE WALL HUNG FIXTURE CARRIER WALL HUNG FLUSH VALVE, REFER TO PLUMBING SCHEDULE SCHEDULED PARTITION STAINLESS STEEL GRAB BAR WITH BACKING WHERE OCCUR GRIPPING SURFACE, TYP U.N.O 2' - 10" TO TOP OF 17" - 19" TO TOP OF SEAT SCHEDULED URINAL, REFER TO PLUMBING SCHEDULE SCHEDULED FLOOR FINISH, REFER TO FINISH PLANS URINAL SCREEN, REFER TO EQUIPMENT SCHEDULE CONCRETE CURB, REFER TO SLAB EDGE PLANS SCHEDULED FIXTURE CARRIER, FASTEN TO SLAB AS REQUIRED FLUSH SENSOR, REFER TO PLUMBING SCHEDULE SCHEDULED PARTITION SCHEDULED CEILING, REFER TO REFLECTED CEILING PLAN FINISH AS SCHEDULED. REFER TO FINISH PLAN & ELEVATIONS FOR ADDITIONAL INFORMATION FIXED SHELF AFF 4'-0" MAX 2'-0" AT TYPICAL URINAL 1'-7" AT ACCESSIBLE URINAL 1 1/2" MIN AT ACCESSIBLE URINAL 1' - 2 1/4" REFER TO RCP 2' - 10" MAX TO REFLECTIVE SURFACE 3' - 4" MAX REFER TO RCP FIRE TREATED 2X10 BLOCKING LAVATORY SYSTEM W/ INTEGRAL SUPPORTS LAVATORY SYSTEM ANGLED ENCLOSURE WITH HOLD OPEN DOOR 3/4" FRT MOISTURE RESISTANT PLYWOOD BACKING MATERIAL SCHEDULED PARTITION SCHEDULED CEILING, REFER TO REFLECTED CEILING PLAN FINISH AS SCHEDULED. REFER TO FINISH PLAN & ELEVATIONS FOR ADDITIONAL INFORMATION FIXED SHELF W/ HOOKS 3'-10" MAX 3'-0" INTEGRATED RESINOUS BASE MECHANICALLY ATTACH MIRROR WITH INTEGRATED LIGHTS. SEE AG1.050 FOR MOUNTING HEIGHT LOCATION 2' - 3" MIN 9" MIN MAX 6" 10 5/8"
