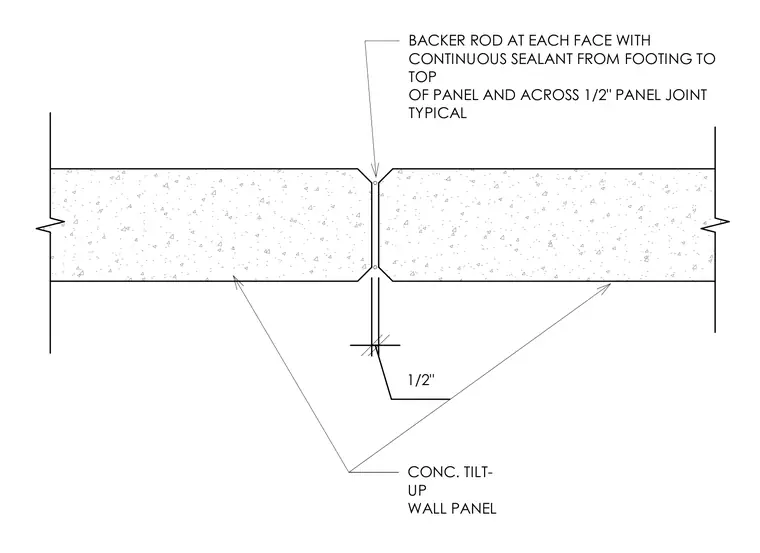

Adjacent concrete tilt-up wall panels are separated by a one-half-inch joint running vertically from the footing to the top of the panel. A backer rod is installed at each face of the joint with continuous sealant spanning across the gap. The panel edges feature chamfered corners at the exterior face to accommodate the joint sealing assembly.
BACKER ROD AT EACH FACE WITH CONTINUOUS SEALANT FROM FOOTING TO TOP OF PANEL AND ACROSS 1/2" PANEL JOINT TYPICAL CONC. TILT- UP WALL PANEL 1/2"
