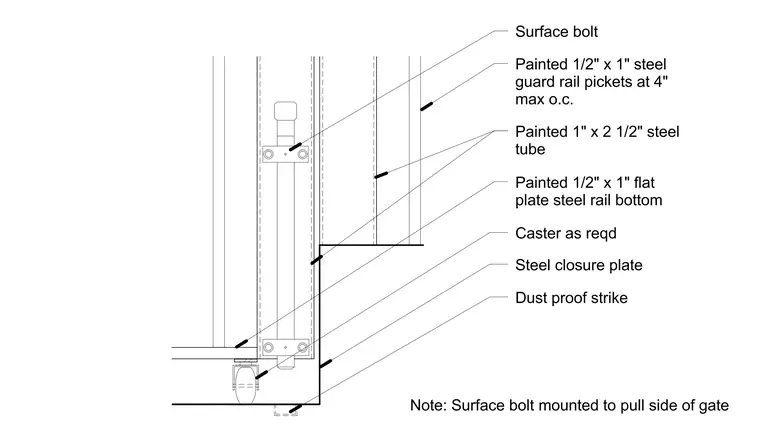

The gate assembly consists of painted 1 inch by 2 and 1/2 inch steel tubes and painted 1/2 inch by 1 inch steel guard rail pickets spaced at a maximum of 4 inches on center. A painted 1/2 inch by 1 inch flat plate forms the rail bottom. A caster is provided as required at the base, alongside a steel closure plate and a dust proof strike. A surface bolt is mounted to the pull side of the gate.
Surface bolt Caster as reqd Painted 1/2" x 1" steel guard rail pickets at 4" max o.c. Painted 1/2" x 1" flat plate steel rail bottom Painted 1" x 2 1/2" steel tube Steel closure plate Dust proof strike Note: Surface bolt mounted to pull side of gate
