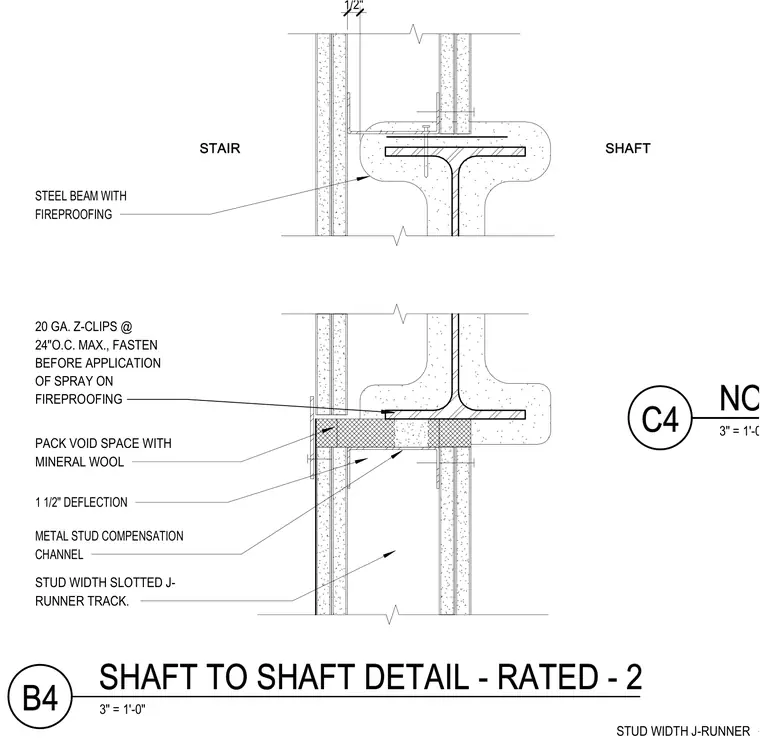

This wall head assembly connects a non-rated shaft wall perpendicular to a fireproofed structural steel beam, allowing for structural deflection at the ceiling junction. The metal stud framing terminates with a stud-width slotted J-runner track, paired with a metal stud compensation channel and packed void space filled with mineral wool insulation. Twenty-gauge Z-clips spaced at twenty-four inches on center maximum are fastened to the substrate prior to the application of spray-on fireproofing on the structural beam.
STUD WIDTH J-RUNNER STAIR PACK VOID SPACE WITH MINERAL WOOL STUD WIDTH SLOTTED J- RUNNER TRACK. SHAFT M E T A L S T U D C O M P E N S A T I O N C H A N N E L 1 1 / 2 " D E F L E C T I O N S T E E L B E A M W I T H F I R E P R O O F I N G 20 GA. Z-CLIPS @ 24"O.C. MAX., FASTEN BEFORE APPLICATION OF SPRAY ON FIREPROOFING 1 / 2 " 3" = 1'-0" C4 NON-RATED HEAD PERPENDICULAR TO DECK 3" = 1'-0" B4 SHAFT TO SHAFT DETAIL - RATED - 2
