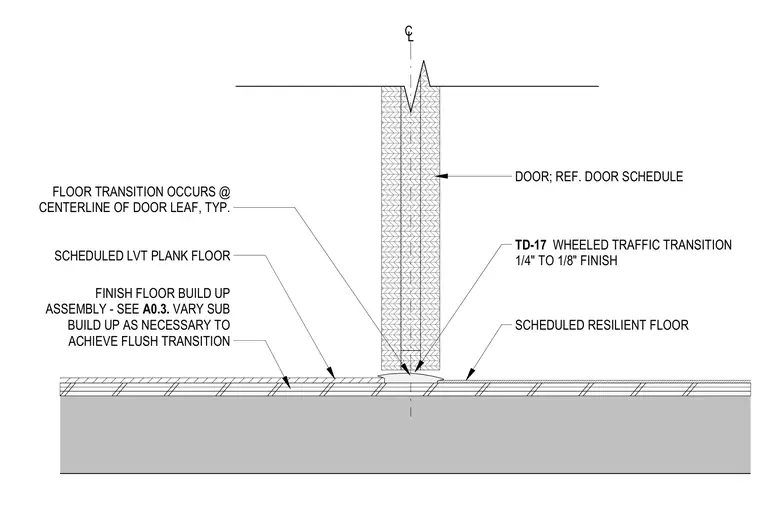

A scheduled LVT plank floor meets a scheduled resilient floor beneath a door leaf centerline. A TD-17 wheeled traffic transition strip bridges the gap between the varying finish heights. The underlying floor build-up assembly varies as necessary to achieve a flush transition between the two finish materials.
DOOR; REF. DOOR SCHEDULE FLOOR TRANSITION OCCURS @ CENTERLINE OF DOOR LEAF, TYP. C L TD-17 WHEELED TRAFFIC TRANSITION 1/4" TO 1/8" FINISH SCHEDULED RESILIENT FLOOR SCHEDULED LVT PLANK FLOOR FINISH FLOOR BUILD UP ASSEMBLY - SEE A0.3. VARY SUB BUILD UP AS NECESSARY TO ACHIEVE FLUSH TRANSITION
