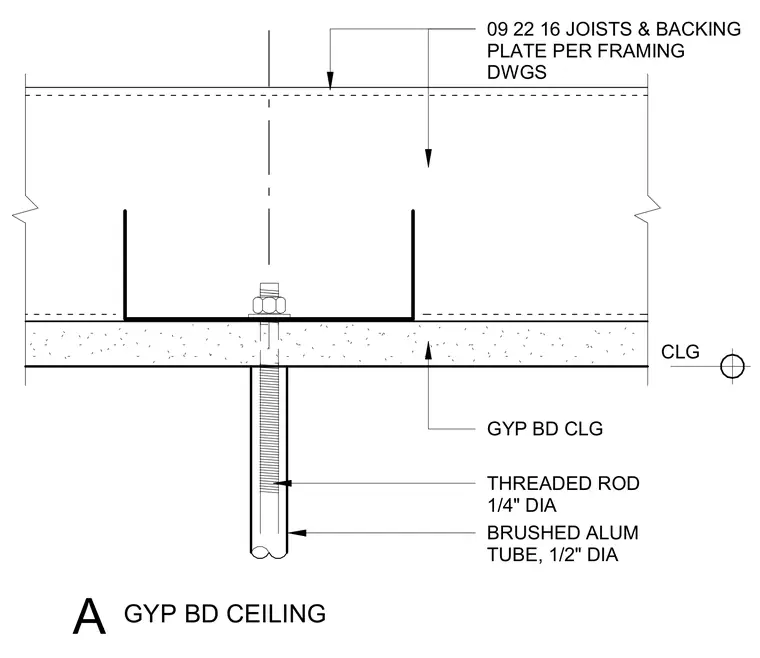

A patient lift cover assembly suspends from a gypsum board ceiling supported by framing joists and backing plates. A quarter-inch diameter threaded rod secures through the gypsum board ceiling into the overhead framing. A half-inch diameter brushed aluminum tube covers the threaded rod below the ceiling line.
CLG GYP BD CEILING A THREADED ROD 1/4" DIA BRUSHED ALUM TUBE, 1/2" DIA GYP BD CLG 09 22 16 JOISTS & BACKING PLATE PER FRAMING DWGS
