An HSS 4x4x5/16 steel post is placed at the masonry corner inside a fully grouted cell of split-face 8x8x16 concrete masonry unit blocks. A base plate connection is anchored with one-half-inch diameter by six-inch hex head studs spaced at twenty-four inches on center and welded to two sides. A one-quarter-inch fillet weld secures the steel assembly.

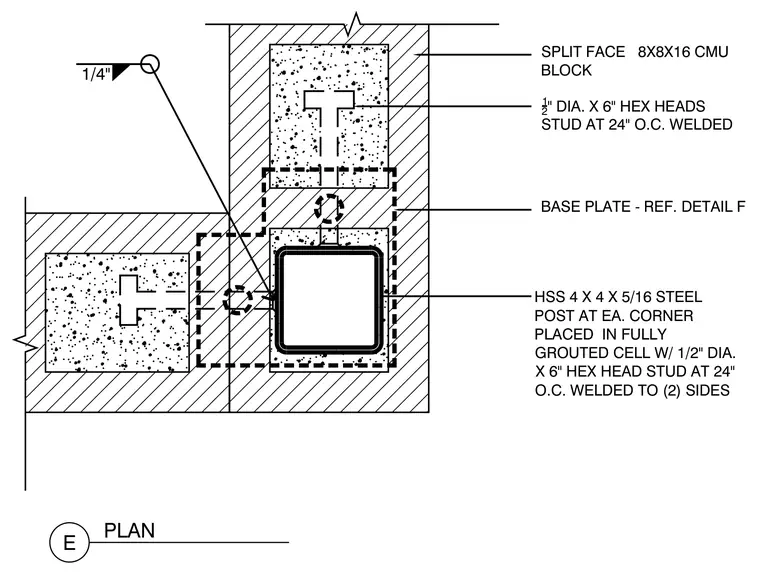

E PLAN HSS 4 X 4 X 5/16 STEEL POST AT EA. CORNER PLACED IN FULLY GROUTED CELL W/ 1/2" DIA. X 6" HEX HEAD STUD AT 24" O.C. WELDED TO (2) SIDES SPLIT FACE 8X8X16 CMU BLOCK BASE PLATE - REF. DETAIL F 1/4" 1 2 " DIA. X 6" HEX HEADS STUD AT 24" O.C. WELDED
