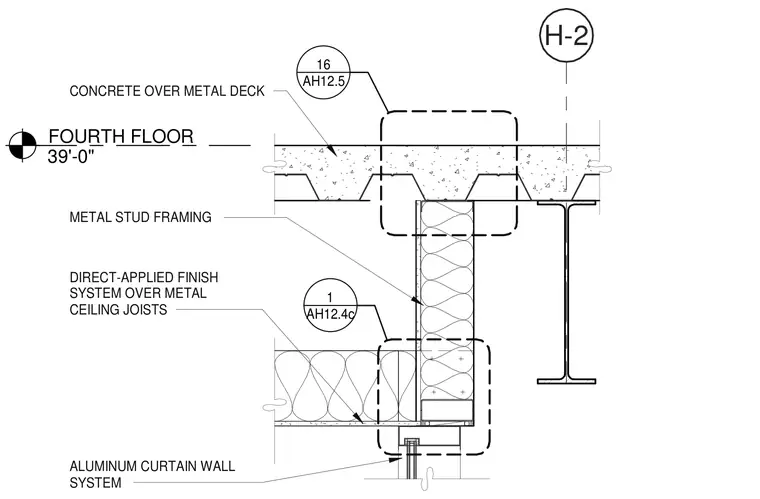

An exterior soffit termination at the fourth floor slab edge integrating concrete over metal deck, cold-formed metal stud framing, and a direct-applied finish system over metal ceiling joists. The assembly interfaces with an aluminum curtain wall system below the soffit line at elevation 39'-0".
H-2 FOURTH FLOOR 39'-0" AH12.4c 1 CONCRETE OVER METAL DECK METAL STUD FRAMING DIRECT-APPLIED FINISH SYSTEM OVER METAL CEILING JOISTS ALUMINUM CURTAIN WALL SYSTEM AH12.5 16
