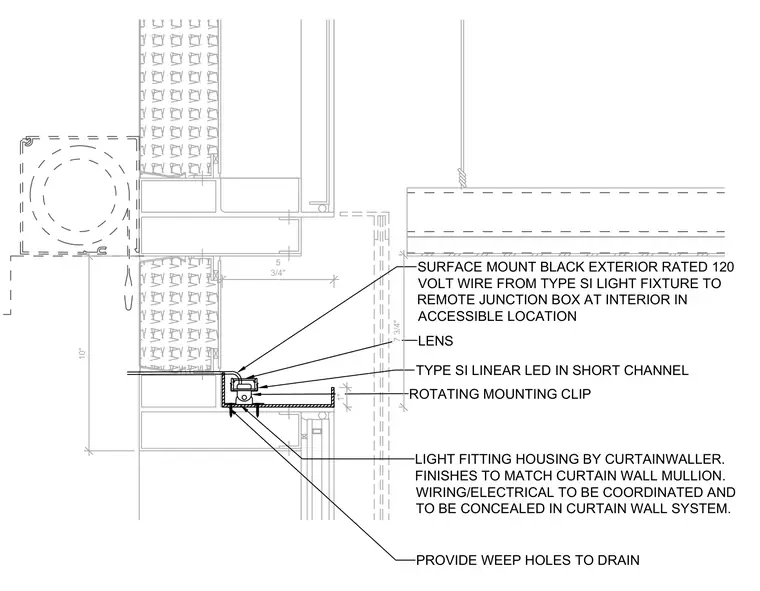

A Type SI linear LED is housed within a short channel secured by a rotating mounting clip inside a ten-inch light fitting housing provided by the curtain wall manufacturer. Finishes match the adjacent curtain wall mullion, with electrical wiring concealed within the curtain wall system and routed to a remote junction box at an accessible interior location. Weep holes are provided in the housing to drain moisture, and black exterior-rated one hundred twenty-volt wire connects the fixture.
10" LENS LIGHT FITTING HOUSING BY CURTAINWALLER. FINISHES TO MATCH CURTAIN WALL MULLION. WIRING/ELECTRICAL TO BE COORDINATED AND TO BE CONCEALED IN CURTAIN WALL SYSTEM. PROVIDE WEEP HOLES TO DRAIN SURFACE MOUNT BLACK EXTERIOR RATED 120 VOLT WIRE FROM TYPE SI LIGHT FIXTURE TO REMOTE JUNCTION BOX AT INTERIOR IN ACCESSIBLE LOCATION TYPE SI LINEAR LED IN SHORT CHANNEL ROTATING MOUNTING CLIP 7 3/4" 5 3/4" 1"
