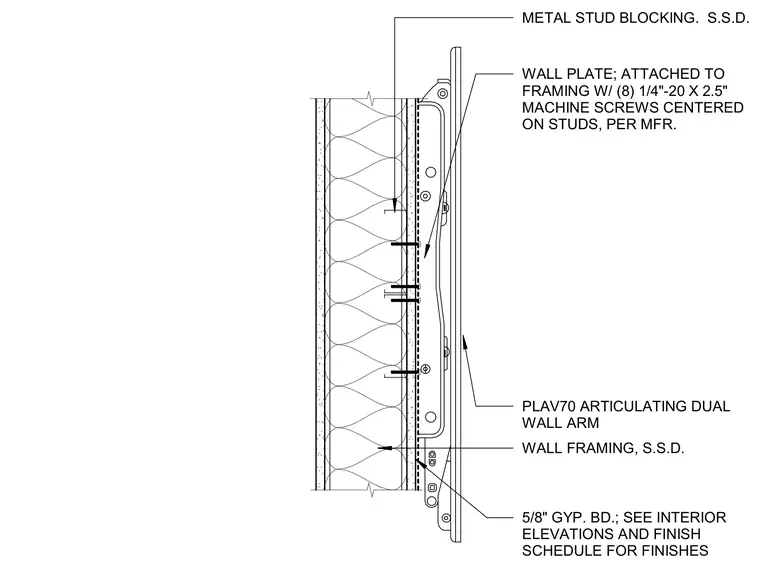

An articulating dual wall arm fastens to a structural wall plate, which is anchored through five-eighths-inch gypsum board into metal stud blocking with eight quarter-twenty by two-and-a-half-inch machine screws centered on the studs per the manufacturer requirements. Metal stud framing provides back-up support behind the gypsum wallboard assembly.
METAL STUD BLOCKING. S.S.D. WALL PLATE; ATTACHED TO FRAMING W/ (8) 1/4"-20 X 2.5" MACHINE SCREWS CENTERED ON STUDS, PER MFR. PLAV70 ARTICULATING DUAL WALL ARM WALL FRAMING, S.S.D. 5/8" GYP. BD.; SEE INTERIOR ELEVATIONS AND FINISH SCHEDULE FOR FINISHES
