Architectural · A-PK6XV

Guardrail Cable System End Fitting Connections

Materials

Elements

About this detail

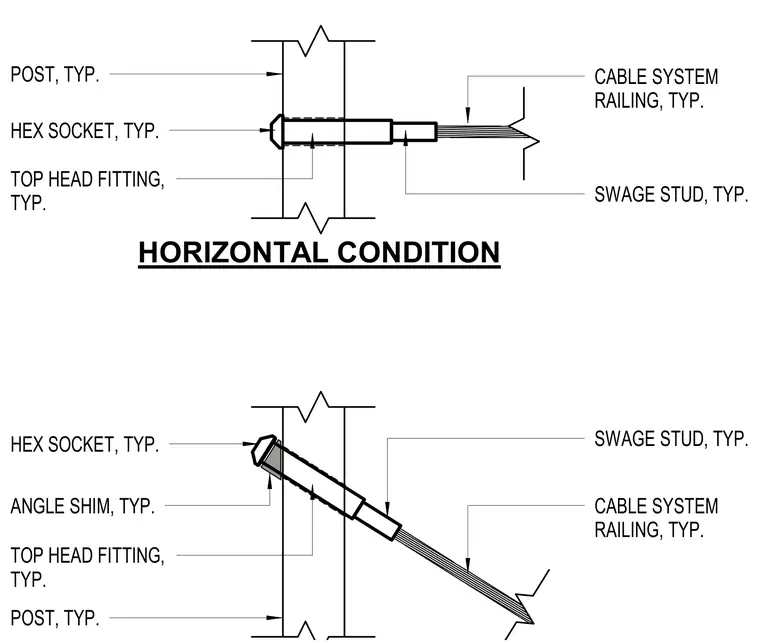

Horizontal and angled cable railing assemblies feature steel cable attached to support posts using swage studs and top head fittings. A hex socket fastens each fitting through the typical post member. Angled conditions incorporate a wedge or angle shim to accommodate the sloping post geometry. The cable system railing spans continuously between posts with standard tensioning hardware.
