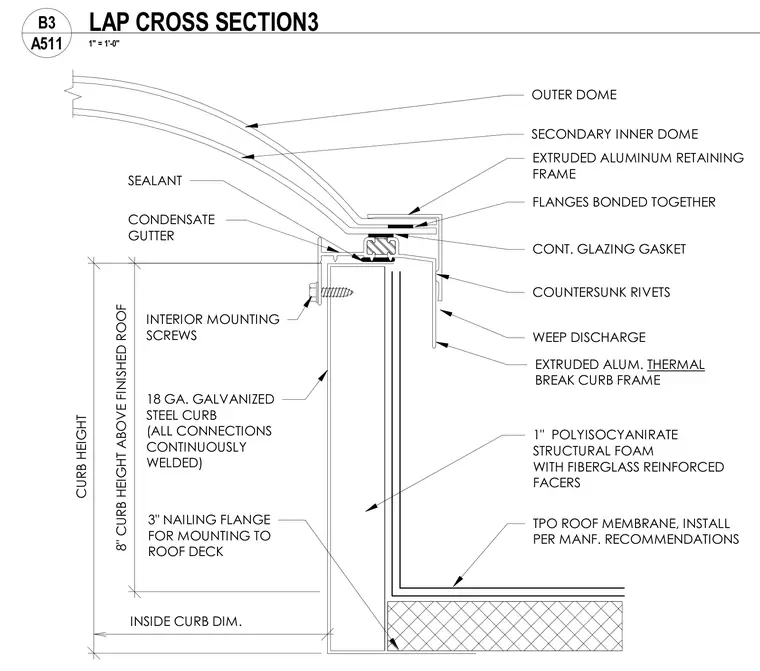

An extruded aluminum retaining frame secures the outer and secondary inner domes over continuous glazing gaskets and a condensate gutter. The eight-inch high curb is constructed from 18 gauge galvanized steel with continuously welded connections and an extruded aluminum thermal break frame secured by countersunk rivets. A three-inch nailing flange fastens the assembly to the roof deck, with an interior mounting screw anchoring the curb. One-inch polyisocyanurate structural foam with fiberglass reinforced facers insulates the assembly beneath the TPO roof membrane installed per manufacturer recommendations.
INSIDE CURB DIM. CURB HEIGHT 8" CURB HEIGHT ABOVE FINISHED ROOF INTERIOR MOUNTING SCREWS 18 GA. GALVANIZED STEEL CURB (ALL CONNECTIONS CONTINUOUSLY WELDED) CONDENSATE GUTTER SECONDARY INNER DOME FLANGES BONDED TOGETHER WEEP DISCHARGE SEALANT CONT. GLAZING GASKET 3" NAILING FLANGE FOR MOUNTING TO ROOF DECK 1" POLYISOCYANIRATE STRUCTURAL FOAM WITH FIBERGLASS REINFORCED FACERS OUTER DOME EXTRUDED ALUMINUM RETAINING FRAME TPO ROOF MEMBRANE, INSTALL PER MANF. RECOMMENDATIONS EXTRUDED ALUM. THERMAL BREAK CURB FRAME COUNTERSUNK RIVETS 1" = 1'-0" A511 B3 LAP CROSS SECTION3
