Architectural · A-PJW5V

Balcony Section Detail with Aluminum Curtain Wall and Pedestal Pavers

Materials

Elements

Beams Walls Curtain Walls Storefronts Roofs Balconies Floors / Slabs Decks Waterproofing / Flashing Insulation Drainage

About this detail

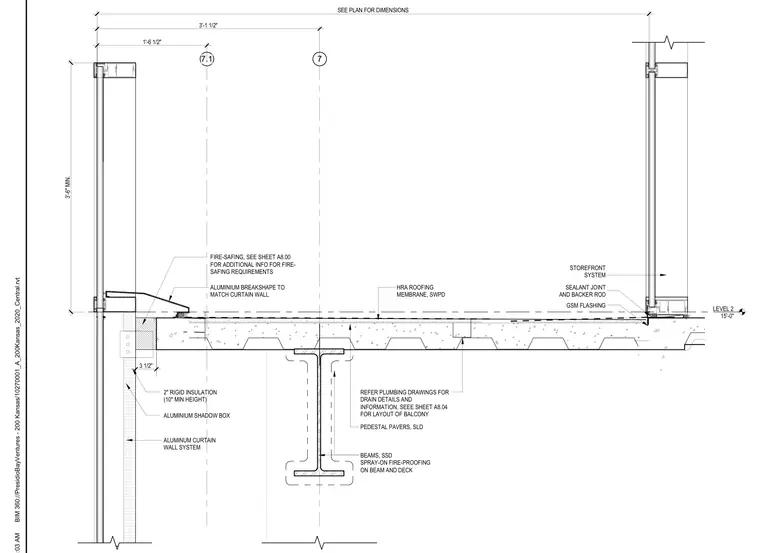

A second-floor balcony assembly at Level 2 consists of a concrete slab on metal deck supported by a structural steel beam with spray-on fireproofing. The assembly incorporates a roofing membrane, galvanized steel sheet flashing, and pedestal pavers over the structural slab. The perimeter features an aluminum curtain wall system, an aluminum shadow box with two inches of rigid insulation of ten inches minimum height, and an aluminum breakshape matching the curtain wall. Fire-safing and joint sealants with backer rods are provided at transitions, and a storefront system is integrated at the interior boundary.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
