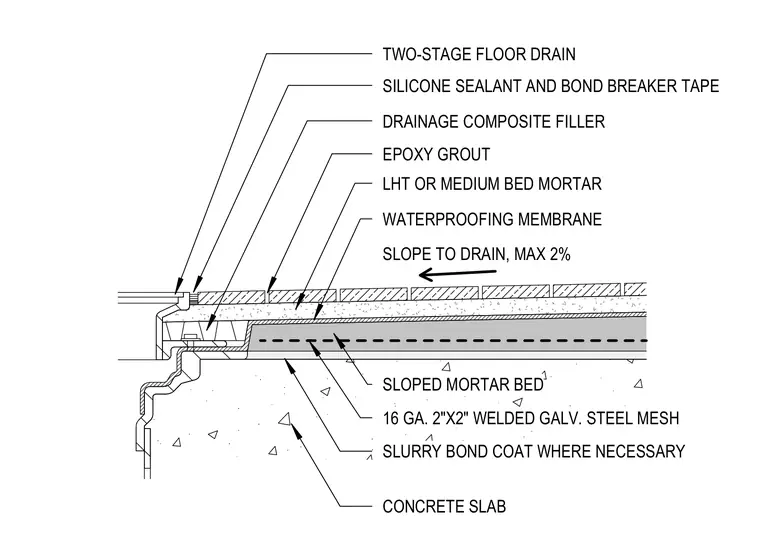

A two-stage floor drain is set into a concrete slab featuring a maximum two percent slope toward the drain. A slurry bond coat is applied to the structural concrete as necessary beneath a sloped mortar bed embedded with sixteen gauge two-inch by two-inch welded galvanized steel mesh. A continuous waterproofing membrane extends across the assembly, overlaid with large and heavy-duty or medium bed mortar. Drainage composite filler is positioned adjacent to the drain body, where a joint is finished with silicone sealant and bond breaker tape. Epoxy grout fills the spaces between the tile wearing surface.
DRAINAGE COMPOSITE FILLER TWO-STAGE FLOOR DRAIN EPOXY GROUT SILICONE SEALANT AND BOND BREAKER TAPE LHT OR MEDIUM BED MORTAR WATERPROOFING MEMBRANE SLOPED MORTAR BED 16 GA. 2"X2" WELDED GALV. STEEL MESH SLURRY BOND COAT WHERE NECESSARY CONCRETE SLAB SLOPE TO DRAIN, MAX 2%
