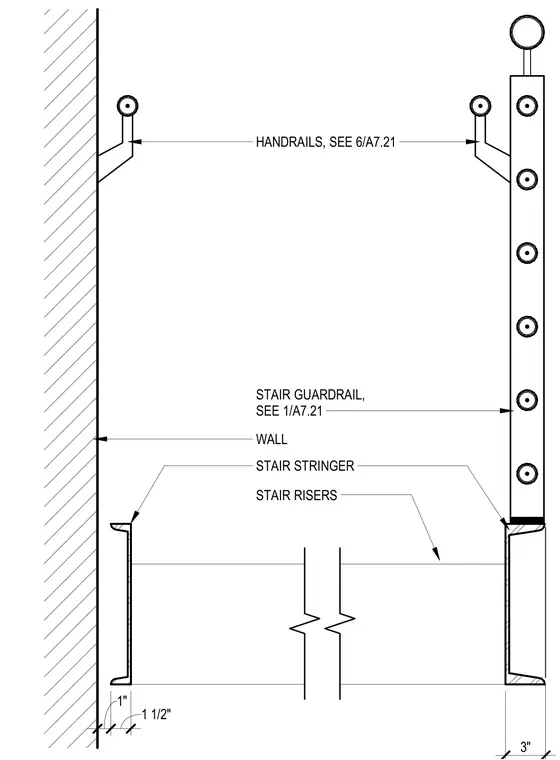

A stair stringer and guardrail section sits adjacent to a wall. Stair risers span between the stringers. A stair guardrail featuring multiple horizontal rails and a handrail mounts to the stair assembly, and a separate wall-mounted handrail attaches to the adjacent wall.
1" 1 1/2" 3" STAIR GUARDRAIL, SEE 1/A7.21 HANDRAILS, SEE 6/A7.21 STAIR STRINGER STAIR RISERS WALL
