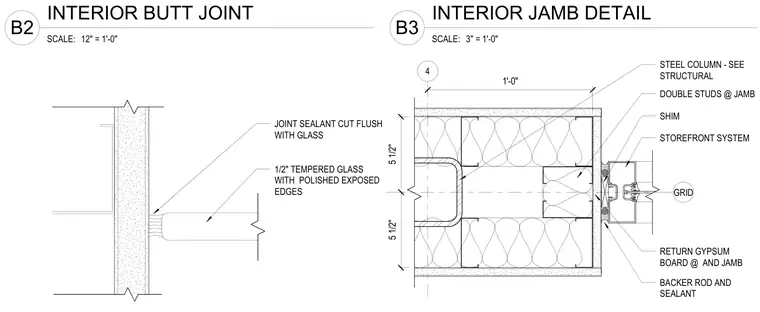

An interior storefront system intersects with a steel column flanked by double metal studs at the jamb. Shims adjust the storefront frame alignment against the gypsum board return. Backer rod and joint sealant seal the perimeter junction between the frame and wall finish. A separate detail shows a one-half inch tempered glass panel with polished exposed edges joined with flush joint sealant.
JOINT SEALANT CUT FLUSH WITH GLASS 1/2" TEMPERED GLASS WITH POLISHED EXPOSED EDGES RETURN GYPSUM BOARD @ AND JAMB BACKER ROD AND SEALANT STOREFRONT SYSTEM SHIM DOUBLE STUDS @ JAMB 5 1/2" 5 1/2" STEEL COLUMN - SEE STRUCTURAL GRID 1'-0" 4 SCALE: 12" = 1'-0" B2 INTERIOR BUTT JOINT SCALE: 3" = 1'-0" B3 INTERIOR JAMB DETAIL
