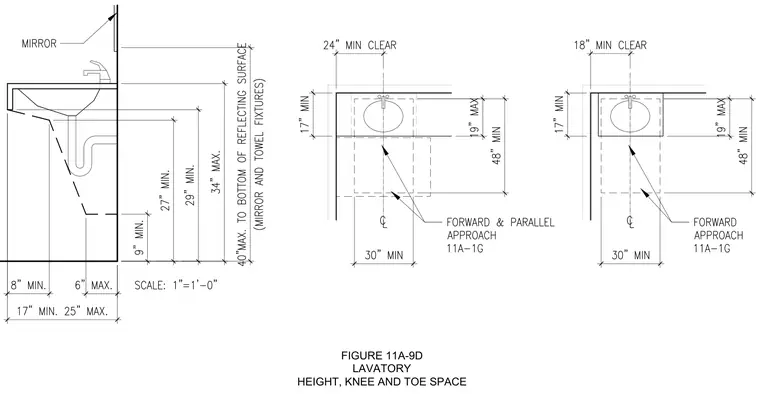

An accessible lavatory elevation and plan details showing required clearance dimensions for wheelchair users. The side profile establishes a 34 inch maximum rim height, 27 inch minimum knee clearance, 29 inch minimum mid-clearance, and 9 inch minimum toe space height above the finished floor. Knee and toe depth dimensions range from 8 inches minimum to 25 inches maximum at the base. Plan views outline a 30 inch minimum clear width for forward approach with side wall clearances of 24 inches and 18 inches minimum respectively.
